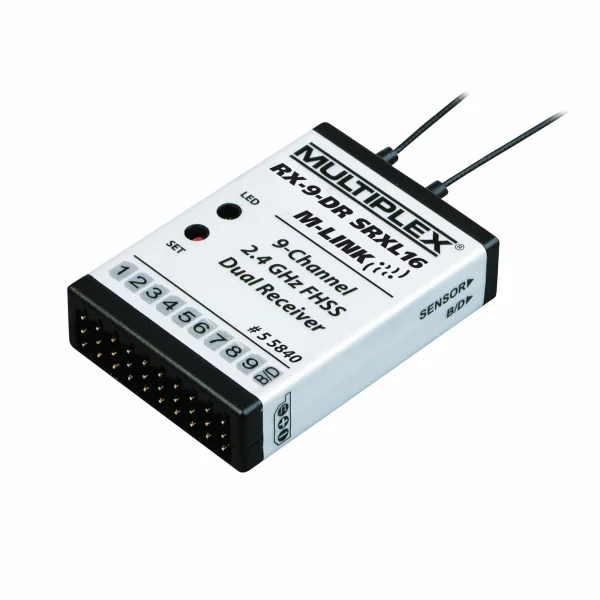

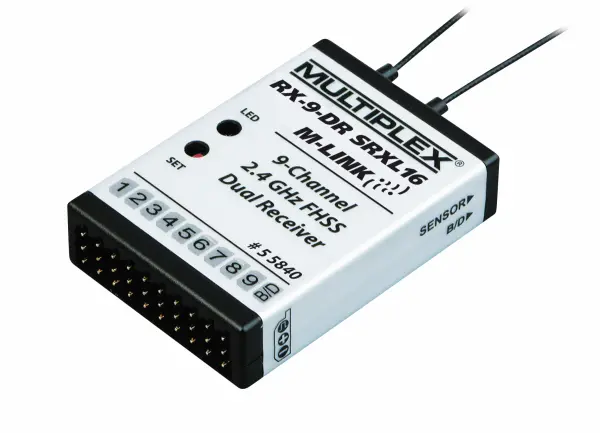

Receiver Rx-9-Dr M-Link W/SRXL Interface 2.4GHz 55840

The Multiplex Receiver Rx-9-Dr M-Link W/SRXL Interface 2.4GHz 55840 (MPX55840) is a universal 9-channel DR receiver for functional and scale models using Multiplex 2.4 GHz M-LINK technology. It operates with any M-LINK transmitter and features dual-receiver diversity with two complete receiver circuits running in parallel. Combined with special signal pre-amplification, this design delivers high sensitivity, excellent reception quality and robust system range.

In addition to its nine proportional outputs, the serial SRXL interface provides up to 16 proportional channels for advanced setups, including MULTIswitch FLEXX bus and flybarless systems. The unit supports telemetry/return channel operation and includes an integrated sensor interface for connecting up to 16 external sensor modules. Built using the latest SMD technology, it also offers a HOLD/FAIL-SAFE function, an integrated error counter for voltage and signal monitoring, MULTImate compatibility, and a PC interface for updates.

Key Features

• Max 9 proportional channels
• 16 proportional channels via SRXL interface
• SRXL interface for MULTIswitch FLEXX bus and flybarless systems
• Dual-receiver diversity architecture with signal pre-amplification
• HOLD/FAIL-SAFE function
• Telemetry/return channel capable
• Integrated sensor interface for up to 16 external sensor modules
• Integrated error counter (voltage and signal errors)
• MULTImate compatible
• Integrated PC interface – updateable

Suggested Compatibility

• Helicopters
• Multicopters
• RC trucks
• RC construction machines
• RC ships

Tech Specs

• Shipping weight: 0.26 kg / 0.56 lbs
• Age recommendation: 14+
• Colour: Black
