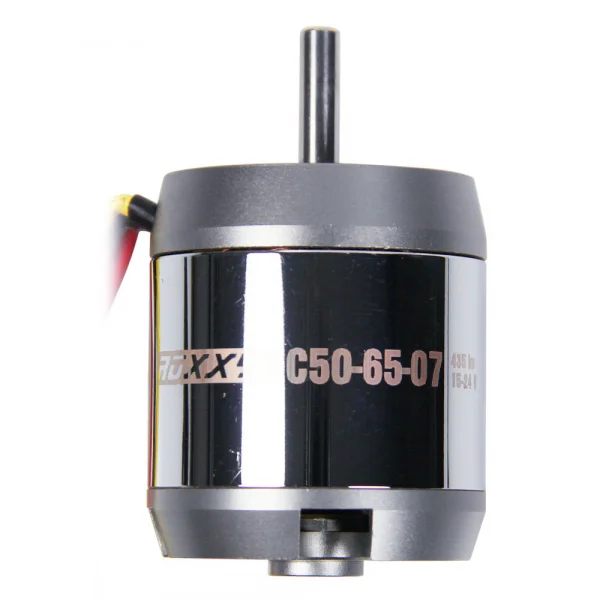

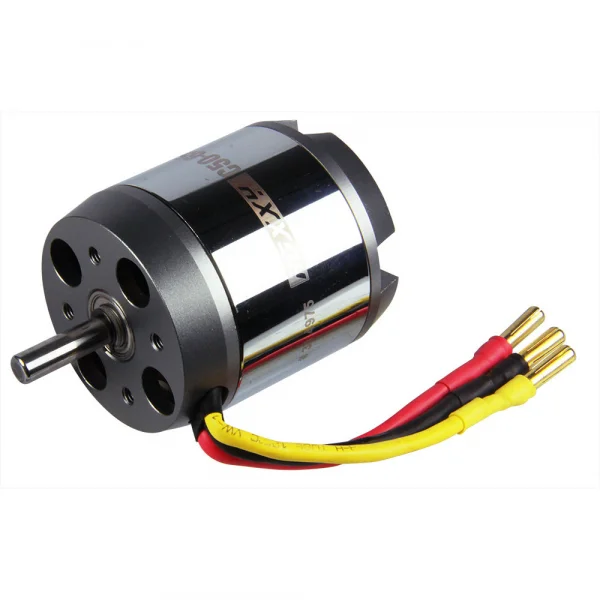

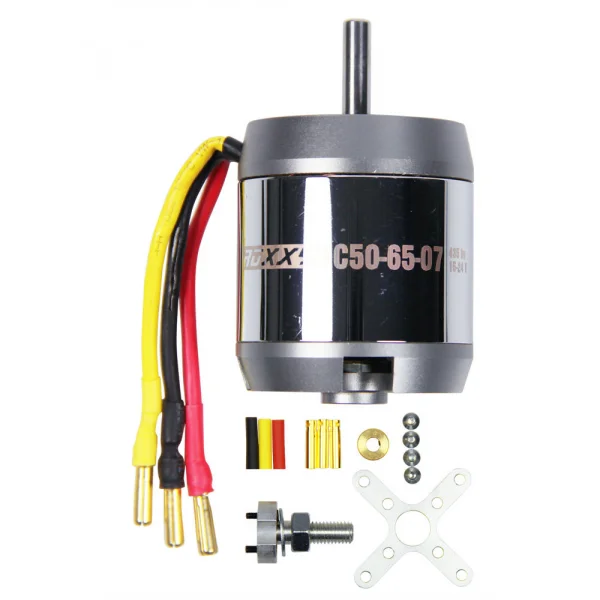

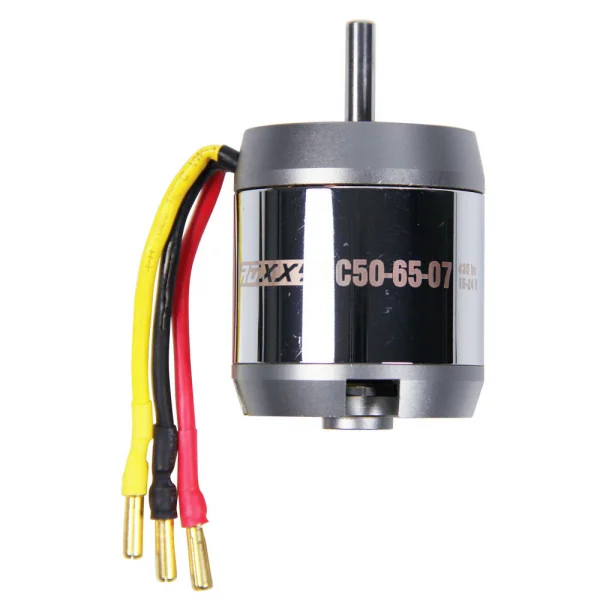

Multiplex ROXXY BL Outrunner C50-65-07 Motor MPX314975
Brand: Multiplex
Part No: MPX314975
Out of stock
Request Stock NotificationFinance options available at checkout.
Customers Also Buy
Popular with customers who buy products like the ROXXY BL Outrunner (C50-65-07)
Description
The Multiplex ROXXY BL Outrunner (C50-65-07), part number MPX314975, is a 14-pole brushless outrunner motor with neodymium magnets for electric power systems. It is rated at 435kV and 2250W and works across a 15 to 24V range. As an outrunner it needs no reduction gearbox, so it can drive large propellers directly.
Maximum copper fill and neodymium magnets give the motor its efficiency, while large precision ball bearings keep it running smoothly. It can be mounted from either end, which gives some flexibility when planning an installation. The motor is silver with steel construction and uses bullet connectors. Multiplex gives an age recommendation of 14 and over.

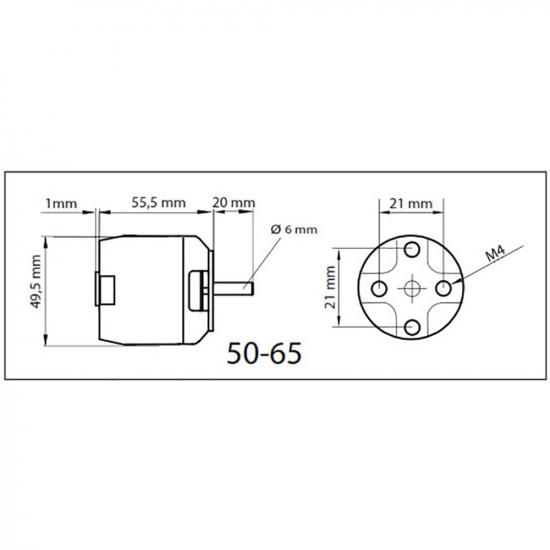

Specifications
- Motor diameter: 50 mm
- Length: 61 mm
- Shaft diameter: 6 mm
- Weight: 377 g
- Voltage range: 15 - 24 V
- Connector: Bullet
Secured by Stripe
ROXXY BL Outrunner (C50-65-07) Manuals & Guides
Specifications
14-pole brushless outrunner motors
Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.
The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.
- Maximum copper fill ratio and superior neodymium magnets for high efficiency
- Large, precision ballraces ensure smooth running
- Can be mounted by either end
ROXXY BL Outrunner (C50-65-07) Key Features:
- High efficiency due to maximum copper filling and use of high-quality neodymium magnets.
- Smooth running thanks to large precision ball bearings
- Mounting possible on both sides
- 435kV
- 2250W
- 50mm motor diameter.
- 6mm shaft diameter.
- Voltage range: 15 - 24V
ROXXY BL Outrunner (C50-65-07) Tech Specs:
- Weight: 377g / 13.30oz
- Shipping Weight: 0.57kg / 1.26lbs
- Product Length: 61mm / 2.40in
- Product Diameter: 50mm / 1.97in
- Connector: Bullet
- Age Recommendation: 14+
- Colour: Silver
- Material: Steel
Key Info:
- Brand: Multiplex
- Part No: MPX314975
- Barcode: 4041033079751
