Description

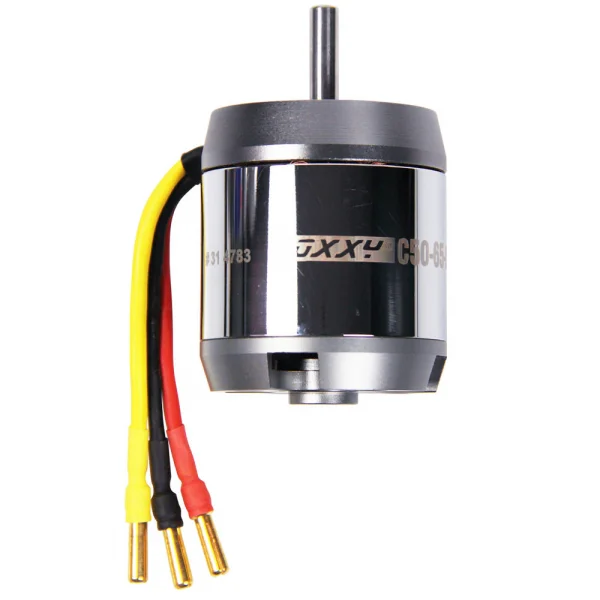

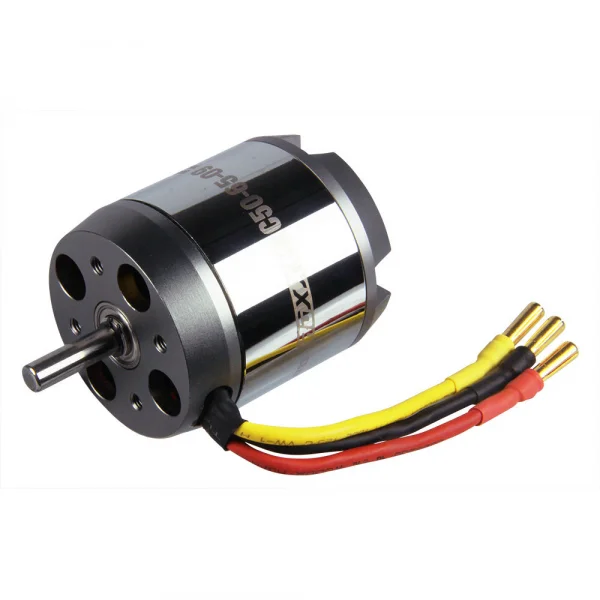

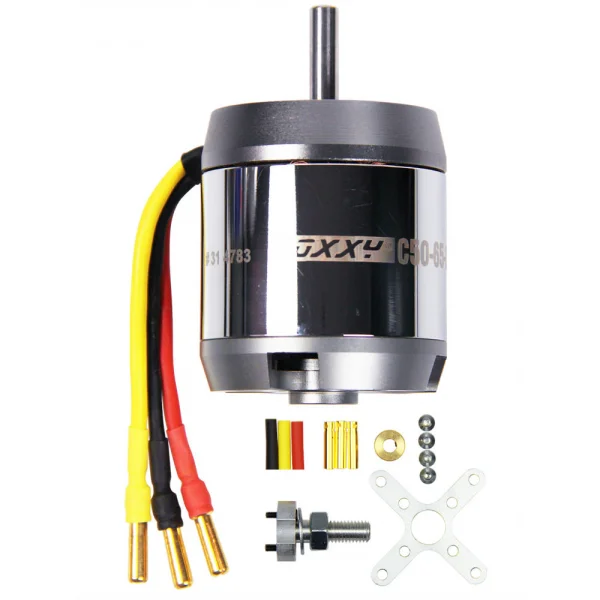

The Multiplex ROXXY BL Outrunner (C50-65-09), part number MPX314783, is a 14-pole brushless outrunner motor that uses neodymium magnets to provide electric power for models. Outrunners of this type need no reduction gearbox, and their construction often allows them to drive large propellers directly, which makes them well suited to direct-drive applications.
This motor is rated at 335kV and 2100W and works across a voltage range of 15 to 30V. The copper fill is maximised for efficiency, and large precision ball bearings keep the motor running smoothly. It can be mounted from either end, so it can be fitted in whichever orientation suits your installation.
The motor has a silver steel finish, a 6mm shaft and bullet connectors, and the manufacturer recommends it for ages 14 and over. The key figures are listed below for comparison.
Specifications
- Speed constant: 335kV
- Power: 2100W
- Voltage range: 15 - 30V
- Motor diameter: 50 mm
- Motor length: 61 mm
- Shaft diameter: 6 mm
- Weight: 377 g
- Connector: Bullet
Secured by Stripe
ROXXY BL Outrunner (C50-65-09) Manuals & Guides
Specifications
14-pole brushless outrunner motors
Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.
The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.
- Maximum copper fill ratio and superior neodymium magnets for high efficiency
- Large, precision ballraces ensure smooth running
- Can be mounted by either end
ROXXY BL Outrunner (C50-65-09) Key Features:
- High efficiency due to maximum copper filling and use of high-quality neodymium magnets.
- Smooth running thanks to large precision ball bearings
- Mounting possible on both sides
- 335kV
- 2100W
- 50mm motor diameter.
- 6mm shaft diameter.
- Voltage range: 15 - 30V
ROXXY BL Outrunner (C50-65-09) Tech Specs:
- Weight: 377g / 13.30oz
- Shipping Weight: 0.57kg / 1.25lbs
- Product Length: 61mm / 2.40in
- Product Diameter: 50mm / 1.97in
- Connector: Bullet
- Age Recommendation: 14+
- Colour: Silver
- Material: Steel
Key Info:
- Brand: Multiplex
- Part No: MPX314783
- Barcode: 4041033017838
