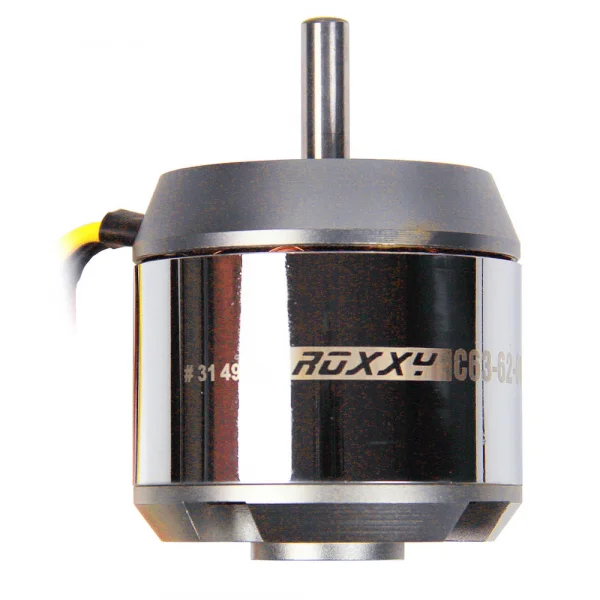

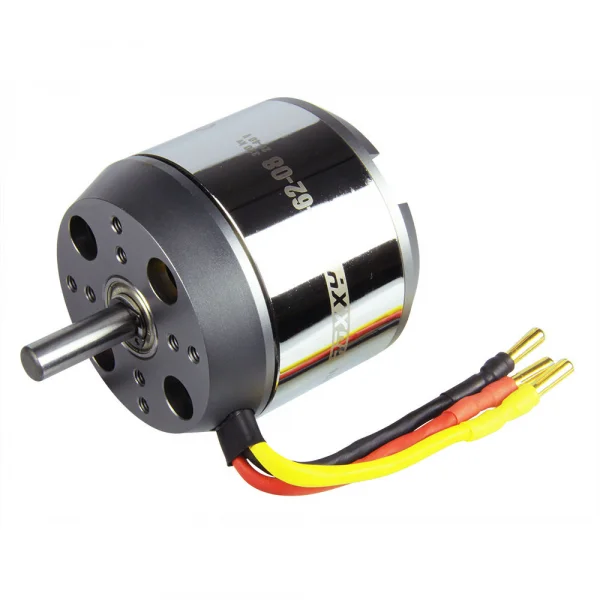

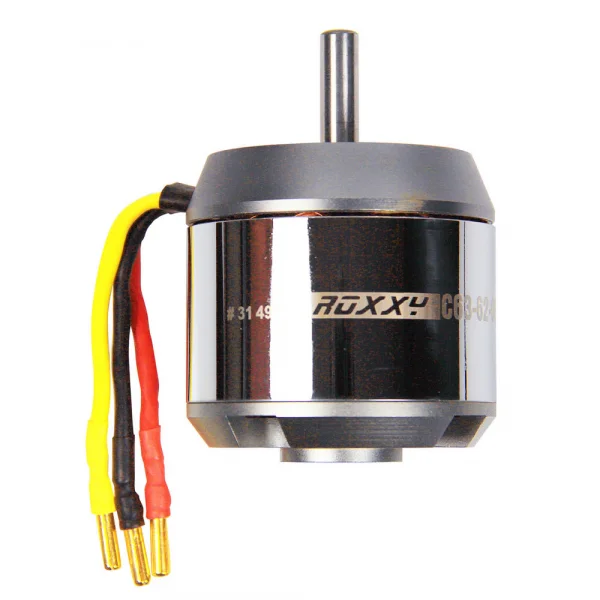

Multiplex ROXXY BL Outrunner 320kV Motor MPX314976
Brand: Multiplex
Part No: MPX314976
Out of stock
Request Stock NotificationFinance options available at checkout.
Customers Also Buy
Popular with customers who buy products like the ROXXY BL Outrunner (C63-62-08) - 320kV
Description
The Multiplex ROXXY BL Outrunner (C63-62-08) 320kV, part number MPX314976, is a 14-pole brushless outrunner motor rated at 320kV and 2850W, supplied with bullet connectors.
Outrunner motors use neodymium magnets and a rotating outer casing, which means they generally need no reduction gearbox. Their construction often allows them to turn large propellers directly, so they suit direct-drive setups. Multiplex describes this motor as having a maximum copper fill ratio for efficiency, and large precision ball races for smooth running. It can be mounted from either end, which gives some flexibility when planning an installation.

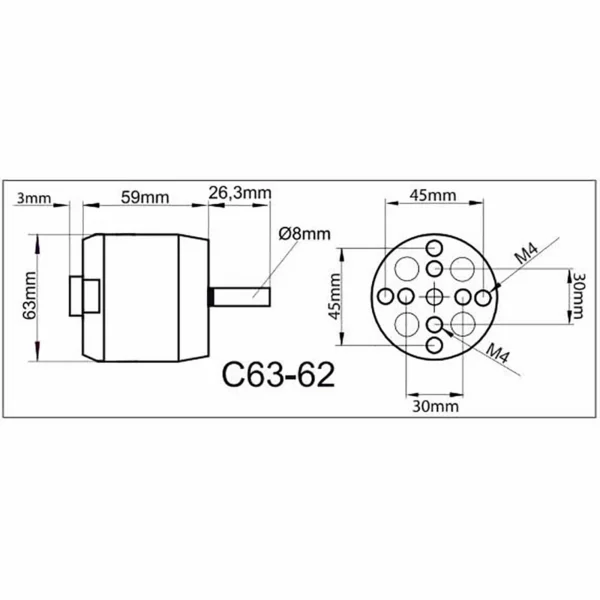

The motor has a 63 mm diameter and an 8 mm shaft. It has a silver finish and a steel construction, and is recommended for ages 14 and over.
Specifications
- Motor rating: 320kV, 2850W
- Weight: 662 g
- Length: 62 mm
- Diameter: 63 mm
- Shaft diameter: 8 mm
- Connector: Bullet
- Colour: Silver
- Material: Steel
Secured by Stripe
ROXXY BL Outrunner (C63-62-08) - 320kV Manuals & Guides
Specifications
14-pole brushless outrunner motors
Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.
The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.
- Maximum copper fill ratio and superior neodymium magnets for high efficiency
- Large, precision ballraces ensure smooth running
- Can be mounted by either end
ROXXY BL Outrunner (C63-62-08) - 320kV Key Features:
- 320kV
- 2850W
- 63mm motor diameter.
- 8mm shaft diameter.
ROXXY BL Outrunner (C63-62-08) - 320kV Tech Specs:
- Weight: 662g / 23.35oz
- Shipping Weight: 0.83kg / 1.83lbs
- Product Length: 62mm / 2.44in
- Product Diameter: 63mm / 2.48in
- Connector: Bullet
- Age Recommendation: 14+
- Colour: Silver
- Material: Steel
Key Info:
- Brand: Multiplex
- Part No: MPX314976
- Barcode: 4041033069769
