Multiplex ROXXY BL Outrunner C63-62-10 Motor MPX314977
Brand: Multiplex
Part No: MPX314977
Out of stock
Request Stock NotificationFinance options available at checkout.
Customers Also Buy
Popular with customers who buy products like the ROXXY BL Outrunner (C63-62-10)
Description

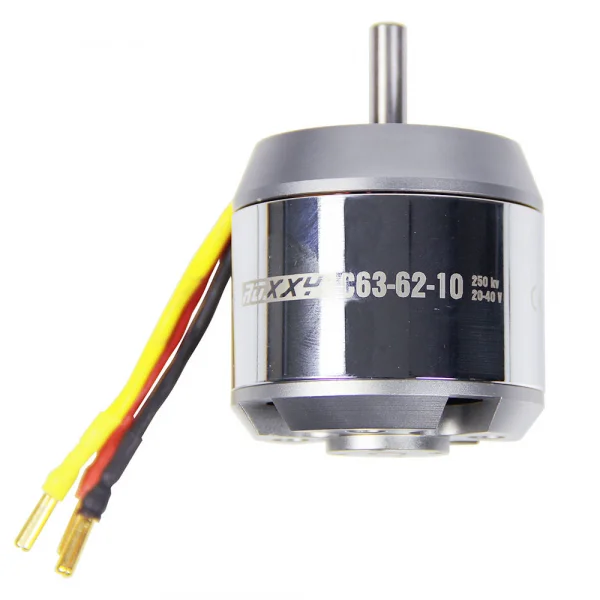

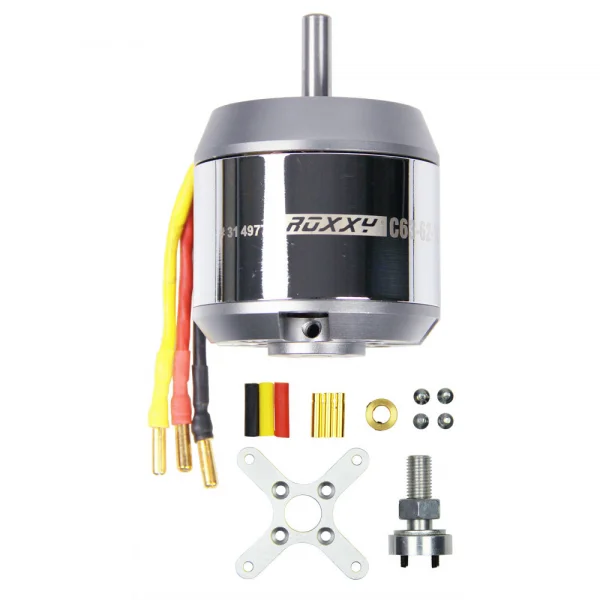

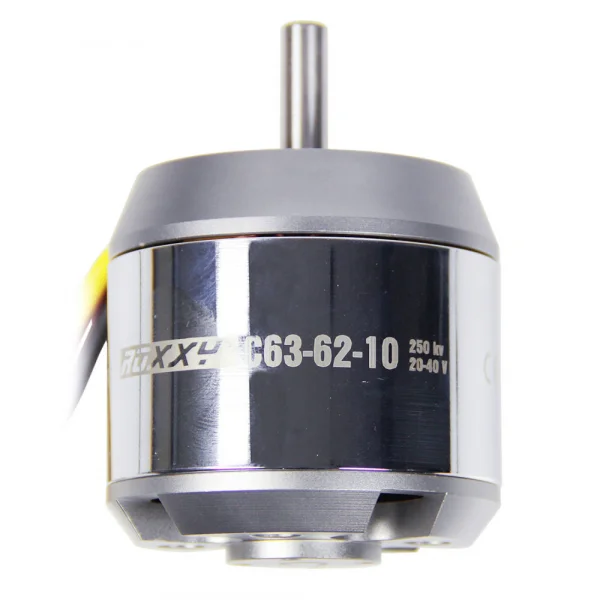

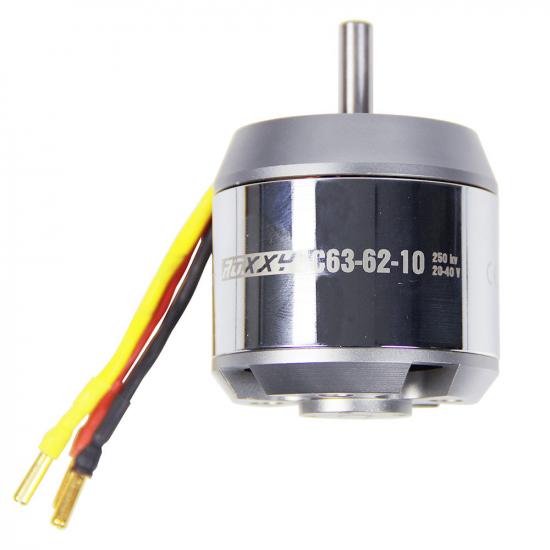

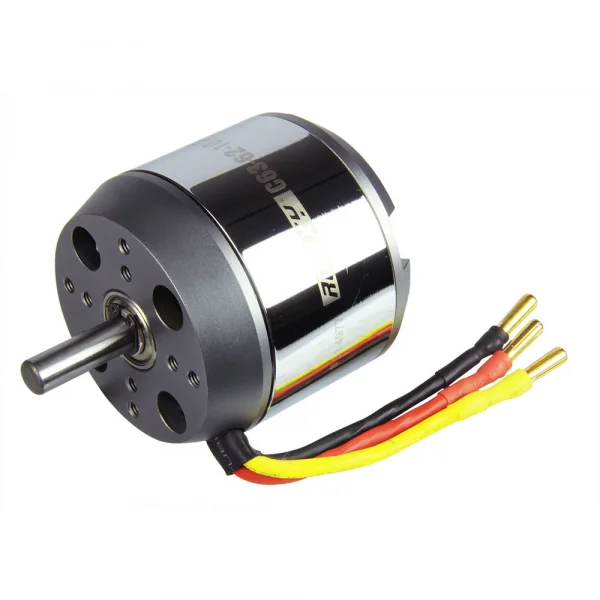

The Multiplex ROXXY BL Outrunner (C63-62-10), part number MPX314977, is a 14-pole brushless outrunner motor with neodymium magnets, rated at 250kV and 2600W.
As an outrunner, this motor does not need a reduction gearbox, and its construction often allows large propellers to be driven directly. Multiplex describe the windings as having a maximum copper fill ratio, which together with the neodymium magnets supports efficient running, while large precision ballraces keep the rotation smooth. The motor can be mounted from either end, which gives some flexibility when planning an installation.
The motor is silver, made from steel and fitted with bullet connectors. The figures most useful for comparison are listed below.
Specifications

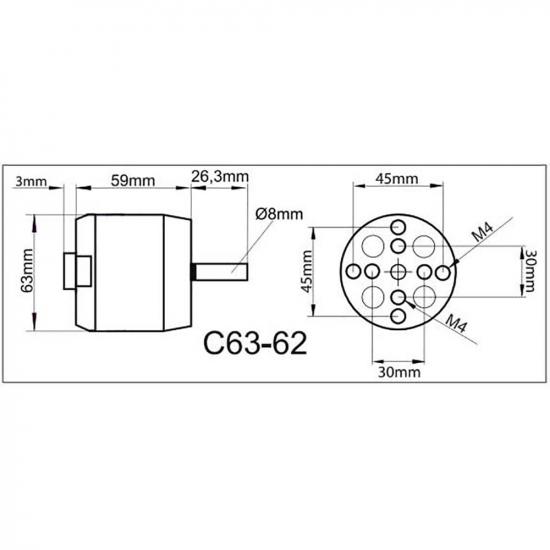

- Motor rating: 250kV, 2600W
- Weight: 662 g
- Length: 62 mm
- Diameter: 63 mm
- Shaft diameter: 8 mm
- Connector: Bullet
- Recommended age: 14+
Secured by Stripe
ROXXY BL Outrunner (C63-62-10) Manuals & Guides
Specifications
14-pole brushless outrunner motors
Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.
The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.
- Maximum copper fill ratio and superior neodymium magnets for high efficiency
- Large, precision ballraces ensure smooth running
- Can be mounted by either end
ROXXY BL Outrunner (C63-62-10) Key Features:
- 250kV
- 2600W
- 63mm motor diameter.
- 8mm shaft diameter.
ROXXY BL Outrunner (C63-62-10) Tech Specs:
- Weight: 662g / 23.35oz
- Shipping Weight: 0.85kg / 1.88lbs
- Product Length: 62mm / 2.44in
- Product Diameter: 63mm / 2.48in
- Connector: Bullet
- Age Recommendation: 14+
- Colour: Silver
- Material: Steel
Key Info:
- Brand: Multiplex
- Part No: MPX314977
- Barcode: 4041033089774
