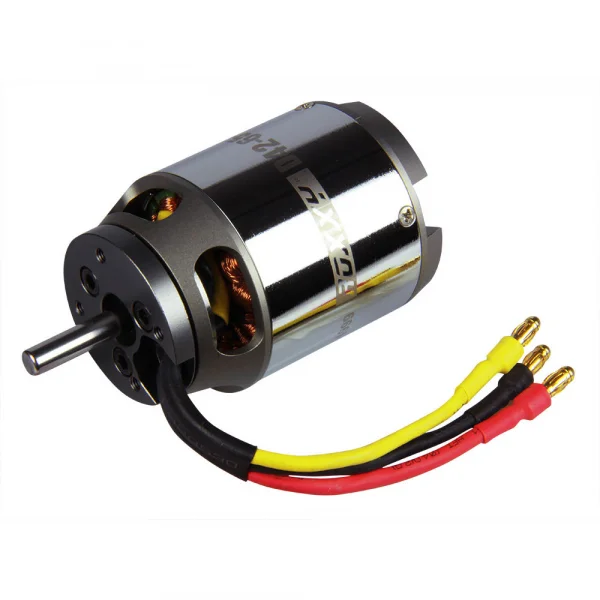

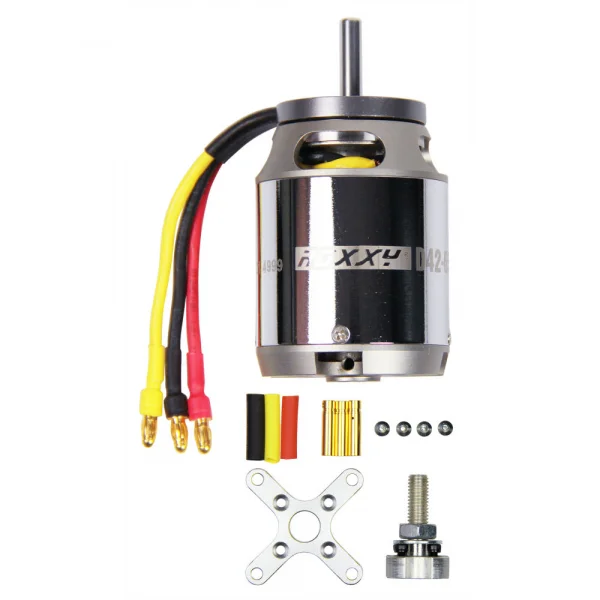

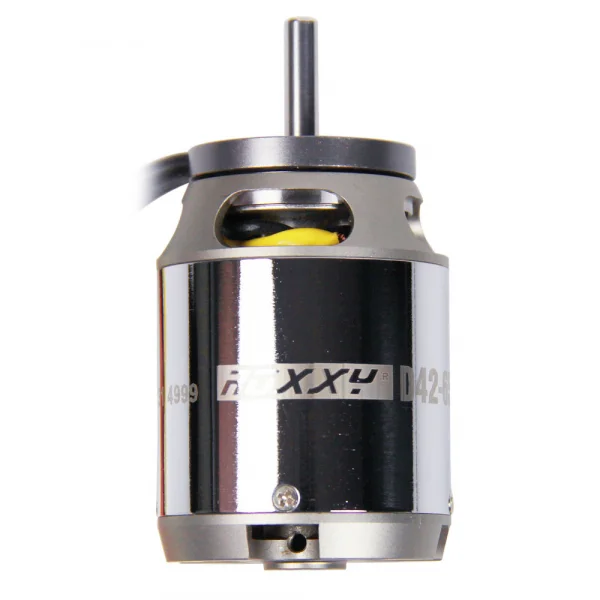

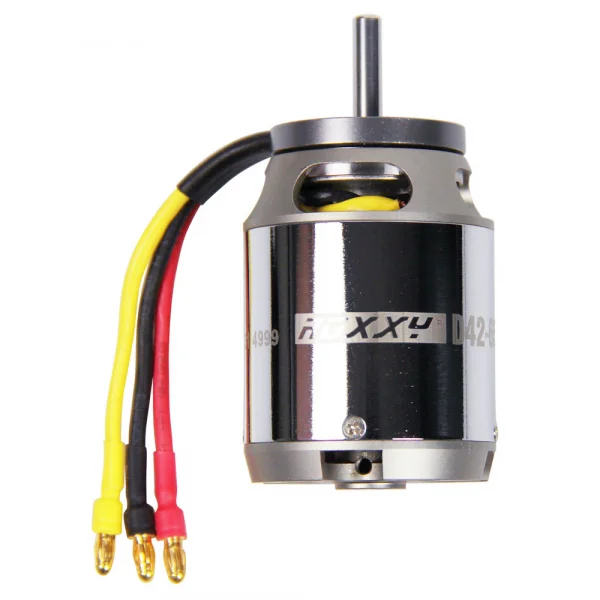

Multiplex ROXXY BL Outrunner Motor 430kV (MPX314999)

Brand: Multiplex

Part No: MPX314999

£126.29 RRP £141.90
Pre-Order

Finance options available at checkout.

Popular with customers who buy products like the ROXXY BL Outrunner (D42-65-06) - 430kV

Description

The Multiplex ROXXY BL Outrunner (D42-65-06) - 430kV, part number MPX314999, is a 14-pole brushless outrunner motor rated at 430kV and 1650W, with a 42 mm motor diameter and a 5 mm shaft.

Outrunner motors of this type use neodymium magnets and require no reduction gearbox. Their construction often allows them to drive large propellers directly, which suits direct-drive applications. The windings use a maximum copper fill ratio and the magnets are neodymium, both aimed at efficient running, and the motor can be mounted from either end.

Motors in the ROXXY D and CA series are fitted with triple ballraces. Large precision ballraces support smooth running, while a third thin-section bearing helps stop the motor bell distorting under load.

Specifications

  • Motor weight: 280 g
  • Length: 65 mm
  • Diameter: 42 mm
  • Shaft diameter: 5 mm
  • Connector: Bullet
  • Colour: Silver
  • Material: Steel
  • Age recommendation: 14+

Specifications

14-pole brushless outrunner motors

Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.

The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.

  • Maximum copper fill ratio and superior neodymium magnets for high efficiency
  • Large, precision ballraces ensure smooth running
  • Can be mounted by either end

ROXXYå¨ BL outrunner motors of the D and CA series are equipped with triple ballraces. To improve precision and smooth-running, a third ballrace, known as a thin-section bearing, is fitted. This prevents the motor bell distorting under load, ensuring smooth running.

ROXXY BL Outrunner (D42-65-06) - 430kV Key Features:

  • 430kV
  • 1650W
  • 42mm motor diameter.
  • 5mm shaft diameter.

ROXXY BL Outrunner (D42-65-06) - 430kV Tech Specs:

  • Weight: 280g / 9.88oz
  • Shipping Weight: 0.40kg / 0.89lbs
  • Product Length: 65mm / 2.56in
  • Product Diameter: 42mm / 1.65in
  • Connector: Bullet
  • Age Recommendation: 14+
  • Colour: Silver
  • Material: Steel


    Key Info:
    • Brand: Multiplex
    • Part No: MPX314999
    • Barcode: 4041033099995
