Multiplex ROXXY BL Outrunner D50-65-00 330kV MPX314665

Brand: Multiplex

Part No: MPX314665

£143.20 RRP £160.90

Usually ships next day

UK Delivery
Get it by Wednesday 25th Nov
Store Collection (Cannock)
Tuesday 24th Nov, once stock arrives

Finance options available at checkout.

Popular with customers who buy products like the ROXXY BL Outrunner (D50-65-00) - 330kV

Description

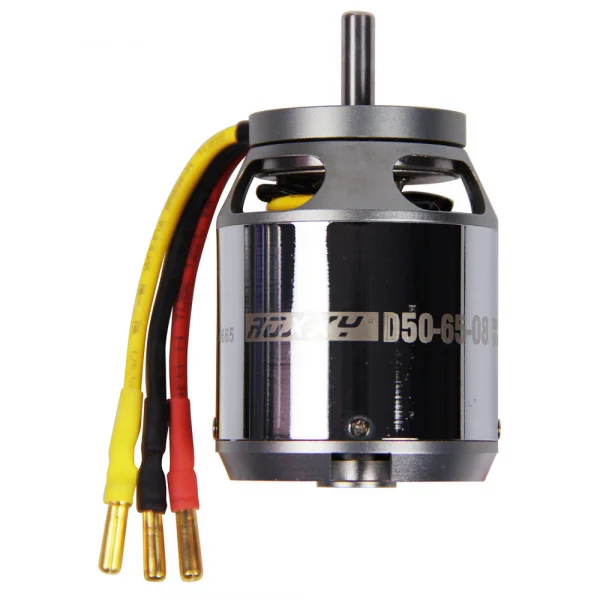

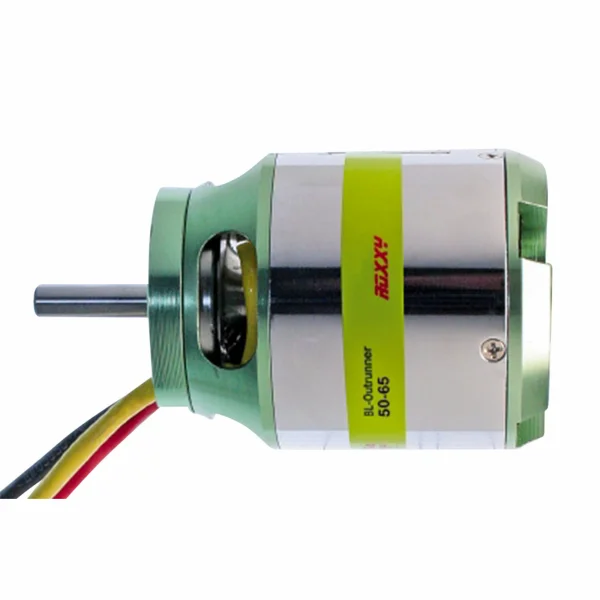

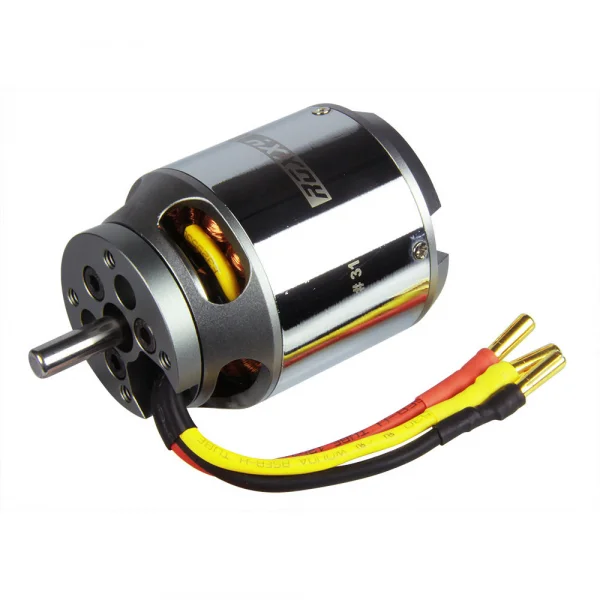

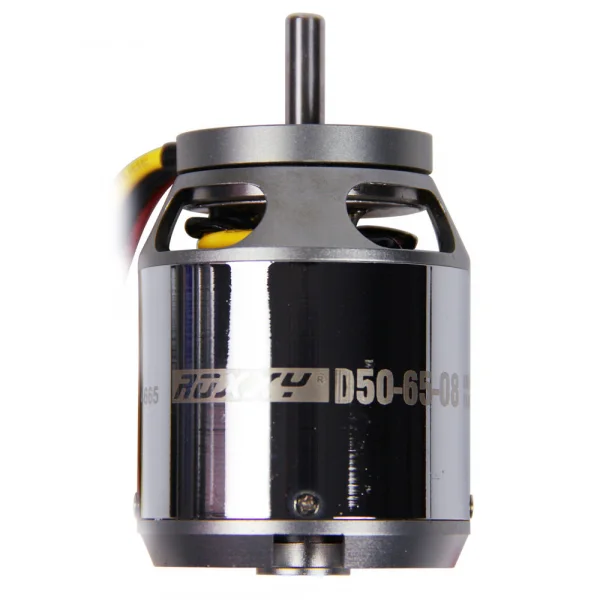

The Multiplex ROXXY BL Outrunner (D50-65-00) - 330kV, part number MPX314665, is a 14-pole brushless outrunner motor with a 50 mm diameter, a 65 mm length and a 6 mm shaft. It uses neodymium magnets and is rated at 330kV and 2100W.

As an outrunner, this motor needs no reduction gearbox. The construction often allows large propellers to be driven directly, which suits direct-drive applications. A maximum copper fill ratio and neodymium magnets contribute to its efficiency, and the motor can be mounted from either end.

Motors in the ROXXY D and CA series have triple ballraces. A third, thin-section bearing is added to improve precision and smooth running, and it stops the motor bell distorting under load.

Specifications

  • Motor diameter: 50 mm
  • Length: 65 mm
  • Shaft diameter: 6 mm
  • Weight: 405 g
  • Material: Aluminium
  • Colour: Silver
  • Recommended age: 14+

Specifications

14-pole brushless outrunner motors

Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.

The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.

  • Maximum copper fill ratio and superior neodymium magnets for high efficiency
  • Large, precision ballraces ensure smooth running
  • Can be mounted by either end

ROXXYå¨ BL outrunner motors of the D and CA series are equipped with triple ballraces. To improve precision and smooth-running, a third ballrace, known as a thin-section bearing, is fitted. This prevents the motor bell distorting under load, ensuring smooth running.

ROXXY BL Outrunner (D50-65-00) - 330kV Key Features:

  • 330kV
  • 2100W
  • 50mm motor diameter.
  • 6mm shaft diameter.

ROXXY BL Outrunner (D50-65-00) - 330kV Tech Specs:

  • Weight: 405g / 14.29oz
  • Shipping Weight: 0.58kg / 1.27lbs
  • Product Length: 65mm / 2.56in
  • Product Diameter: 50mm / 1.97in
  • Age Recommendation: 14+
  • Colour: Silver
  • Material: Aluminium


    Key Info:
    • Brand: Multiplex
    • Part No: MPX314665
    • Barcode: 4041033046654
