ROXXY BL Outrunner (D63-72) Air - 200kV
Brand: Multiplex
Part No: MPX314992
Shadow Stock: Usually ships next day

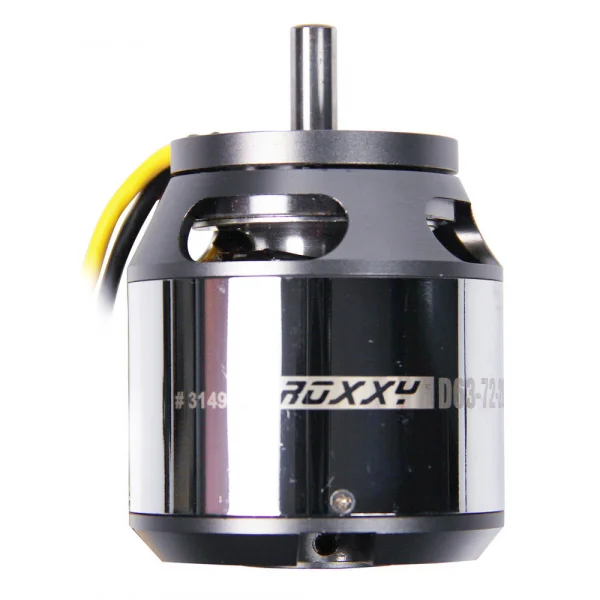

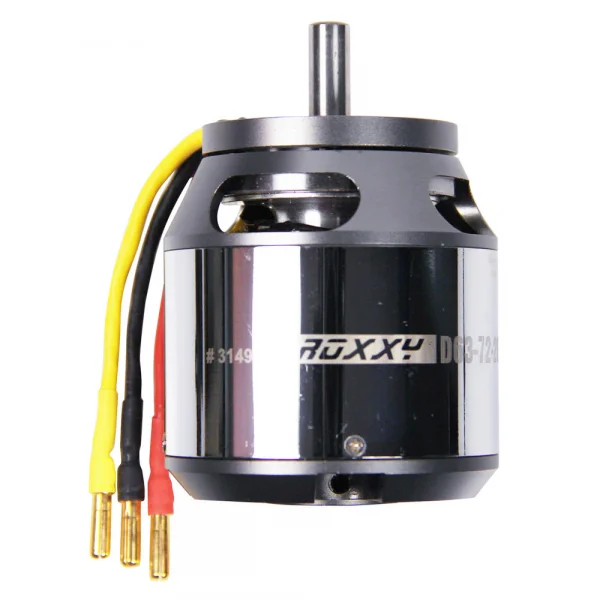

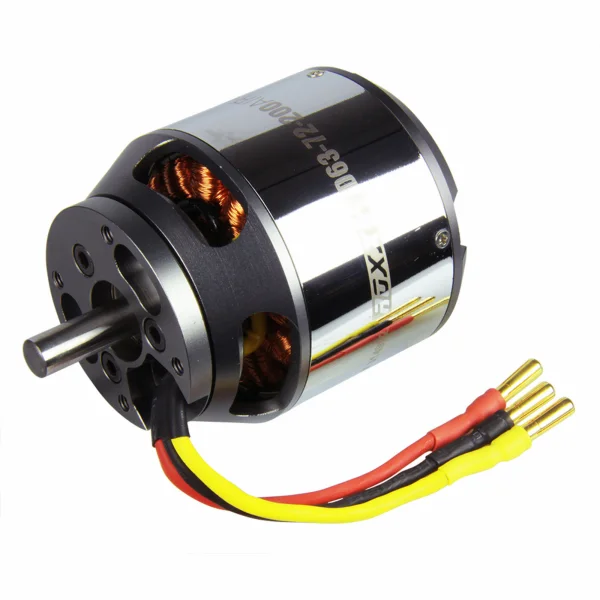

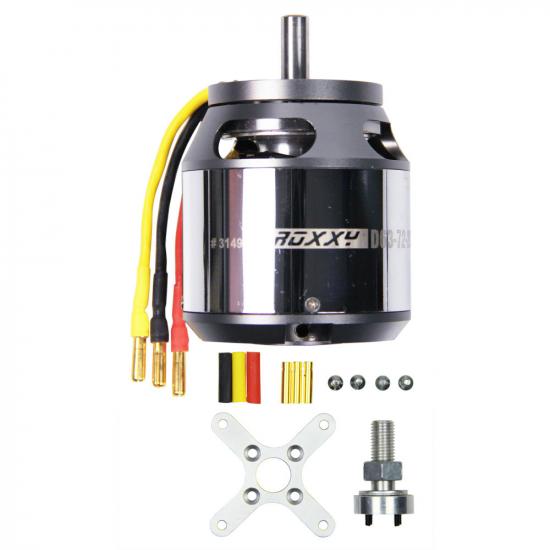

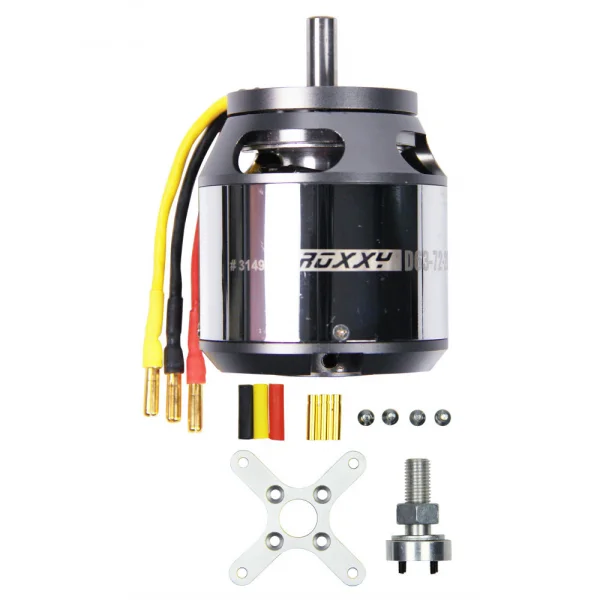

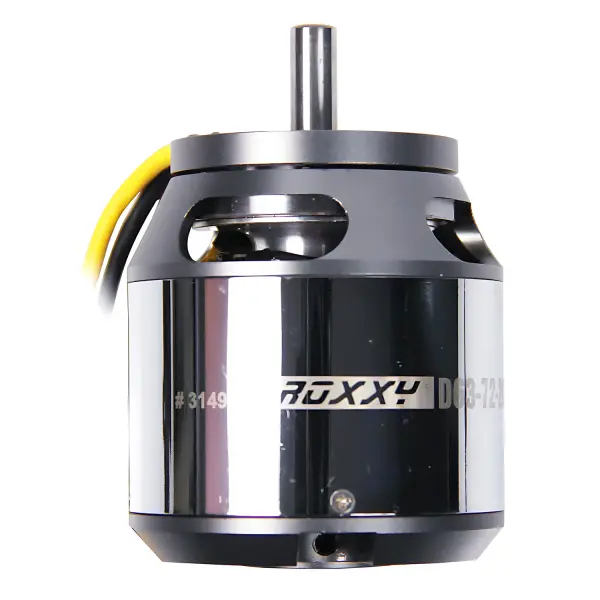

The Multiplex ROXXY BL Outrunner (D63-72) Air - 200kV (MPX314992) is a high-torque, 14‑pole brushless aircraft motor designed for efficient direct-drive performance. Built with neodymium magnets and a high copper fill ratio, it delivers smooth, powerful output for larger electric models. A triple-ballrace arrangement, including a thin-section bearing, helps prevent bell distortion under load for excellent precision and running smoothness.
Thanks to the outrunner design, the D63-72 can turn large propellers without a gearbox, making it well suited to applications where torque and efficiency are key.
Key Features
- 14-pole brushless outrunner with neodymium magnets
- Maximum copper fill ratio for high efficiency
- Triple ballraces (including thin-section bearing) for smooth running
- Large, precision bearings
- Can be mounted at either end
- 200kV rating
- Approx. 2200W power
- 63mm can diameter
- 8mm shaft diameter
- Voltage range: 20–50V
Suitable For
- E-sailplanes up to 17000g
- Scale and sport models up to 9000g
- Aerobatics and 3D up to 6000g
Tech Specs
- Weight: 695g / 24.52oz
- Product Length: 72mm / 2.83in
- Product Diameter: 63mm / 2.48in
- Shipping Weight: 0.88kg / 1.93lbs
- Age Recommendation: 14+
Secured by Stripe
14-pole brushless outrunner motors
Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.
The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.
- Maximum copper fill ratio and superior neodymium magnets for high efficiency
- Large, precision ballraces ensure smooth running
- Can be mounted at either end
ROXXY BL outrunner motors of the D and CA series are equipped with triple ballraces. To improve precision and smooth-running, a third ballrace, known as a thin-section bearing, is fitted. This prevents the motor bell distorting under load, ensuring smooth running.
Suitable For
E-sailplanes up to 17000g
Scale and sport up to 9000g
Aerobatics and 3D up to 6000g
ROXXY BL Outrunner (D63-72) Air - 200kV Key Features:
- 14-pole brushless outrunner motors
Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.
The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.
- Maximum copper fill ratio and superior neodymium magnets for high efficiency
- Large, precision ballraces ensure smooth running
- Can be mounted at either end
ROXXY BL outrunner motors of the D and CA series are equipped with triple ballraces. To improve precision and smooth-running, a third ballrace, known as a thin-section bearing, is fitted. This prevents the motor bell distorting under load, ensuring smooth running.
Suitable For
E-sailplanes up to 17000g
Scale and sport up to 9000g
Aerobatics and 3D up to 6000g - 200KV.
- 2200W.
- Three bearings.
- 63mm can diameter.
- 8mm shaft diameter.
- Voltage range: 20 50V
Manuals & Parts Explosions:
ROXXY BL Outrunner (D63-72) Air - 200kV Tech Specs:
- Weight: 695g / 24.52oz
- Shipping Weight: 0.88kg / 1.93lbs
- Product Length: 72mm / 2.83in
- Product Diameter: 63mm / 2.48in
- Age Recommendation: 14+
Key Info:
- Brand: Multiplex
- Part No: MPX314992
- Barcode: 4041033059920
