Multiplex ROXXY BL Outrunner Motor (D63-72) 230kV MPX314993
Brand: Multiplex
Part No: MPX314993
Out of stock
Request Stock NotificationFinance options available at checkout.
Customers Also Buy
Popular with customers who buy products like the ROXXY BL Outrunner (D63-72) Air - 230kV
Description

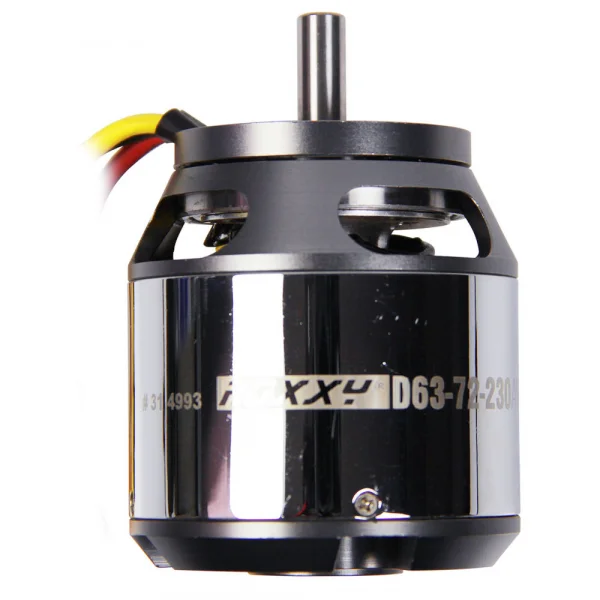

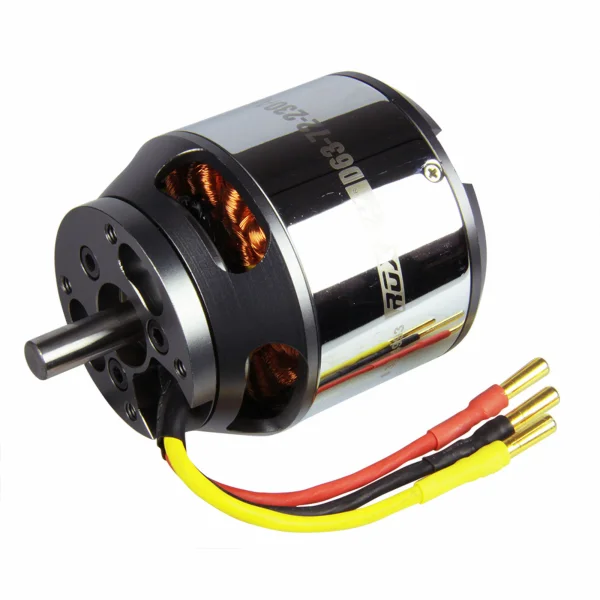

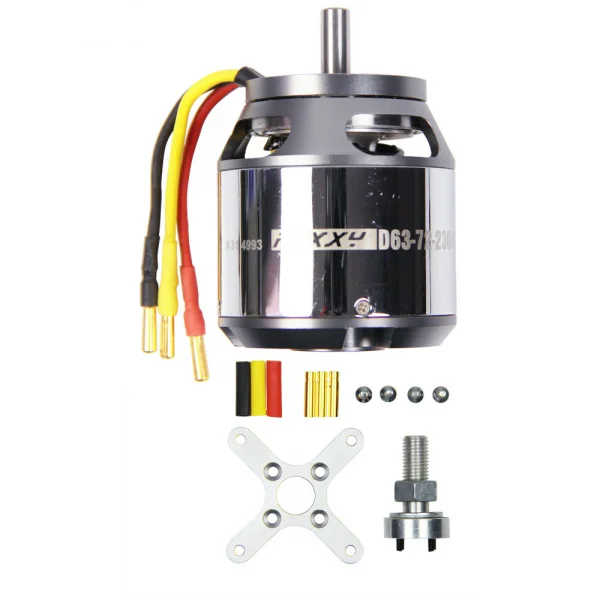

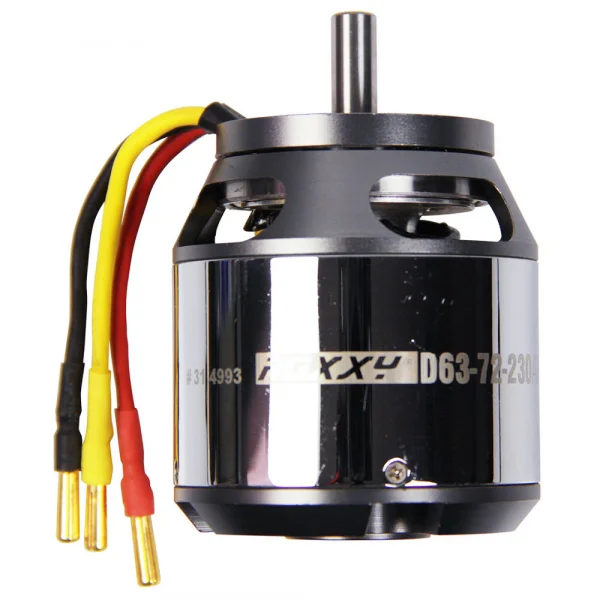

The Multiplex ROXXY BL Outrunner (D63-72) Air - 230kV, part number MPX314993, is a 14-pole brushless outrunner motor rated at 230kV and 2300W, intended for electric model aircraft.
As an outrunner with neodymium magnets, it needs no reduction gearbox and can often turn large propellers directly. The windings have a maximum copper fill ratio for efficiency, and the motor can be mounted at either end.
D and CA series ROXXY motors use triple ballraces. The third bearing is a thin-section type that helps stop the motor bell distorting under load, which keeps running smooth.
Suggested compatibility, according to the manufacturer, is e-sailplanes up to 17000 g, scale and sport models up to 9000 g, and aerobatic and 3D models up to 6000 g. The motor works across a 20-50V range and carries an age recommendation of 14+.
Specifications
- Speed constant: 230kV
- Power: 2300W
- Voltage range: 20-50V

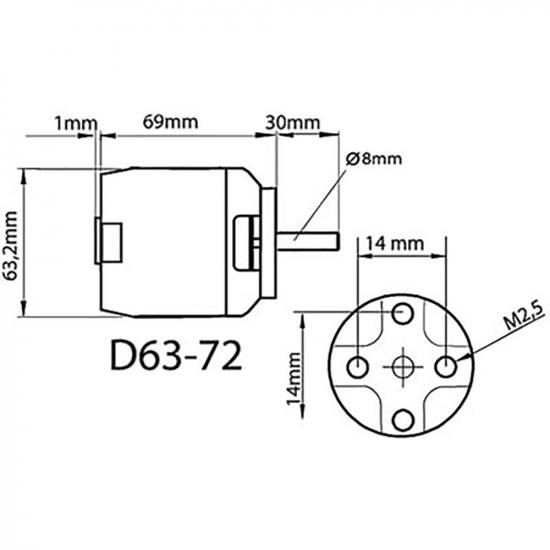

- Can diameter: 63 mm
- Length: 72 mm
- Shaft diameter: 8 mm
- Weight: 695 g
Secured by Stripe
ROXXY BL Outrunner (D63-72) Air - 230kV Manuals & Guides
Specifications
14-pole brushless outrunner motors
Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.
The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.
- Maximum copper fill ratio and superior neodymium magnets for high efficiency
- Large, precision ballraces ensure smooth running
- Can be mounted at either end
ROXXY BL outrunner motors of the D and CA series are equipped with triple ballraces. To improve precision and smooth-running, a third ballrace, known as a thin-section bearing, is fitted. This prevents the motor bell distorting under load, ensuring smooth running.
Suitable For
E-sailplanes up to 17000g
Scale and sport up to 9000g
Aerobatics and 3D up to 6000g
ROXXY BL Outrunner (D63-72) Air - 230kV Key Features:
- 14-pole brushless outrunner motors
Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.
The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.
- Maximum copper fill ratio and superior neodymium magnets for high efficiency
- Large, precision ballraces ensure smooth running
- Can be mounted at either end
ROXXY BL outrunner motors of the D and CA series are equipped with triple ballraces. To improve precision and smooth-running, a third ballrace, known as a thin-section bearing, is fitted. This prevents the motor bell distorting under load, ensuring smooth running.
Suitable For
E-sailplanes up to 17000g
Scale and sport up to 9000g
Aerobatics and 3D up to 6000g - 230KV.
- 2300W.
- Three bearings.
- 63mm can diameter.
- 8mm shaft diameter.
- Voltage range: 20 50V
ROXXY BL Outrunner (D63-72) Air - 230kV Tech Specs:
- Weight: 695g / 24.52oz
- Shipping Weight: 0.89kg / 1.96lbs
- Product Length: 72mm / 2.83in
- Product Diameter: 63mm / 2.48in
- Age Recommendation: 14+
Key Info:
- Brand: Multiplex
- Part No: MPX314993
- Barcode: 4041033049938
