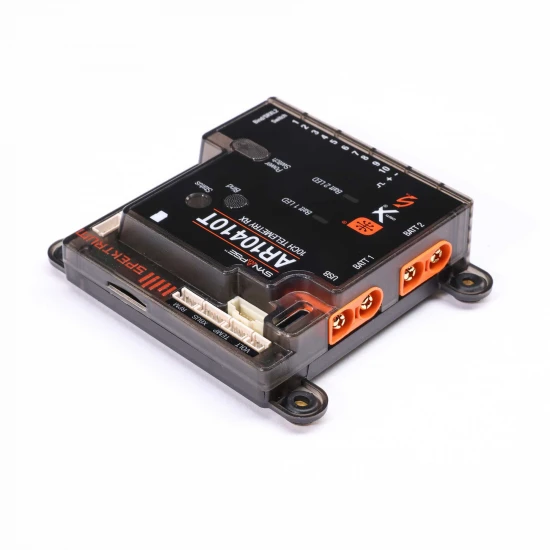

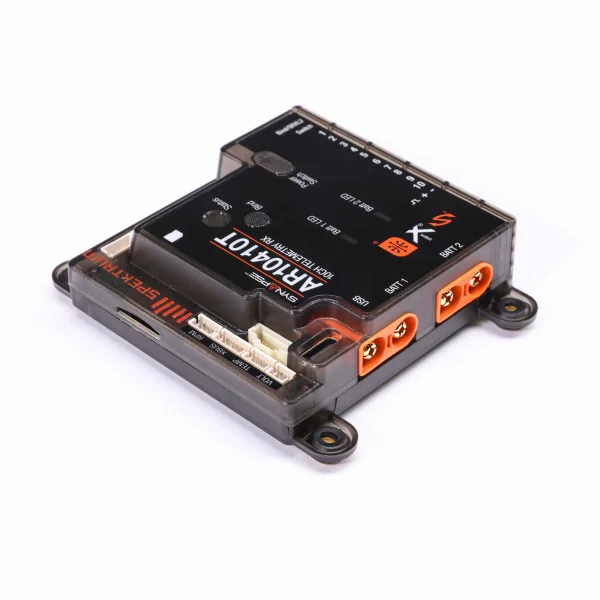

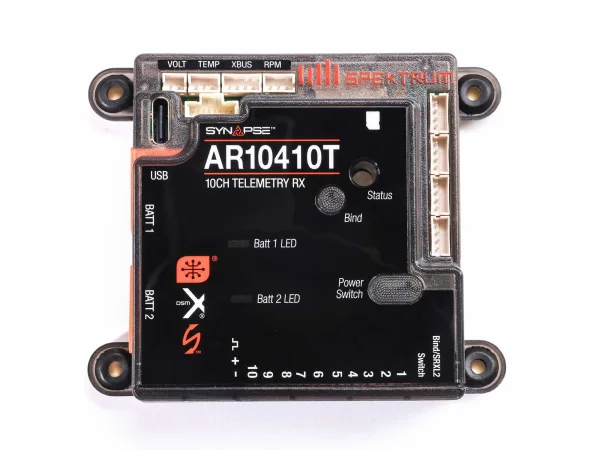

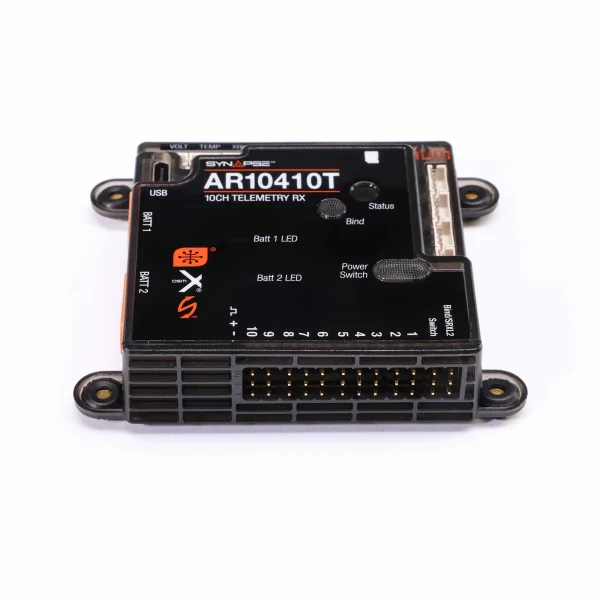

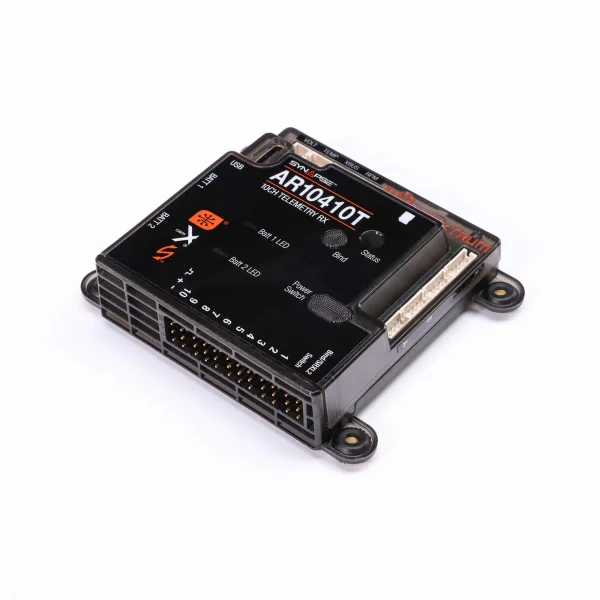

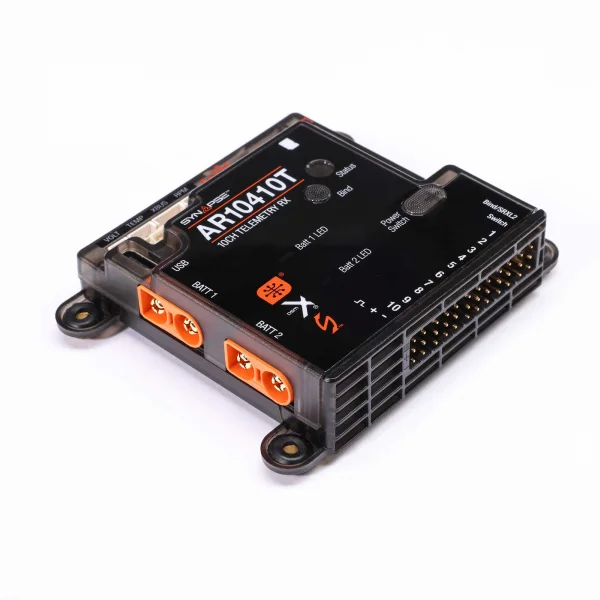

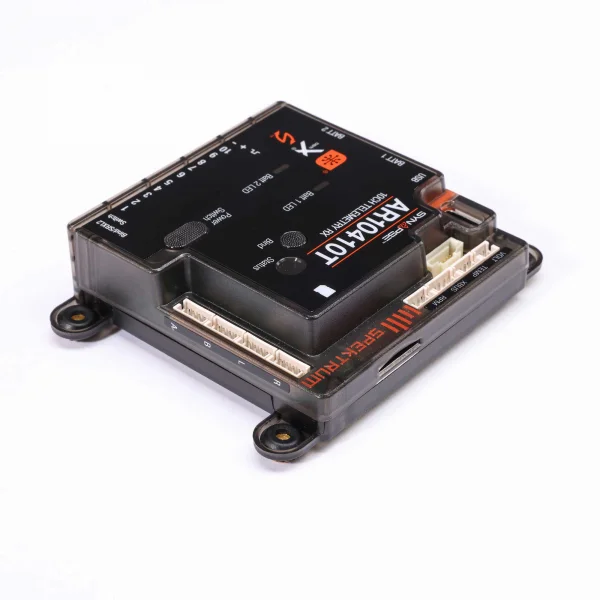

Spektrum AR10410T 10 Channel PowerSafe Telemetry Receiver

The Spektrum AR10410T PowerSafe telemetry receiver delivers reliable control for advanced aircraft with a robust redundant power system and comprehensive, built-in telemetry. Offering 10 channels, full-range DSMX/DSM2 operation and integrated sensors, it is designed to support power-hungry, high-current servo installations while keeping vital flight data at your fingertips. Part number SPMAR10410T.

PowerSafe dual IC3 inputs provide redundancy and high current handling, while the on-board barometer supplies altitude and vario telemetry without extra modules. An integrated battery capacity monitor tracks consumed mAh, and Black Box logging to an optional Micro SD card captures flight data for later review. Forward Programming from compatible Spektrum transmitters streamlines setup, including failsafe and frame rate. USB-C makes registration and firmware updates straightforward.

Key Features

• Suggested compatibility with the Synapse AS3X+/SAFE Flight Stabilization Module (SPMAS6000, not included)

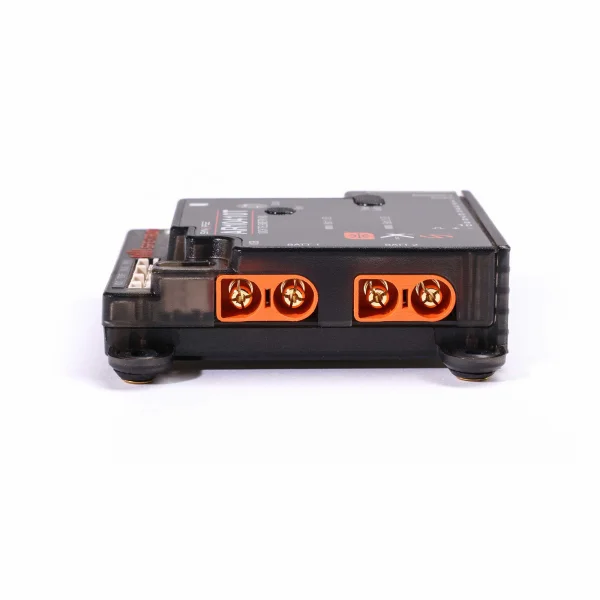

• Patented PowerSafe redundancy with dual IC3 connectors; supports high-current applications up to 35A continuous (50A max burst)
• Forward Programming for quick adjustments to failsafe, servo frame rate settings and more
• Innovative power management with sleep mode for transmitter-controlled remote on/off
• Regenerative servo support
• USB-C port for easy product registration and firmware updates
• 12V capable for 12-volt servo applications (activation via Forward Programming required)
• Integrated battery capacity monitor reports used capacity and auto-resets with fully charged packs
• Integrated Black Box telemetry log saves all telemetry data when a Micro SD card is installed (card not included)
• Integrated status LED for startup, warnings and mode indications
• Suggested compatibility with Spektrum Smart ESC for one-wire telemetry without extra modules or links
• Receiver pack energy & voltage sensor and flight log telemetry available without additional sensors
• Full-range telemetry with integrated barometer for altitude and vario data
• Included soft switch routes servo current around the switch for uninterrupted power if the switch fails
• Rubber grommet hard-mounts and minimalistic labelling for clean installations
• Supports high-speed 11ms frame rates
• Four convenient options to initiate binding
• Integrated telemetry ports for RPM, flight pack voltage, temperature sensors and X-Bus expansion

Specifications

• Application: Air
• Band: 2.4GHz
• Bind Method: Bind button, bind plug
• Channels: 10
• Data Port: Yes
• Failsafe: Yes
• Flight Log Compatible: Yes
• Input Voltage: 3.5–12.6V
• Modulation: DSMX/DSM2
• Product Height: 0.71 in (18 mm)
• Product Length: 2.6 in (66 mm)
• Product Weight: 1.9 oz (54 g)
• Product Width: 2.4 in (61 mm)
• Programmable: Yes
• Range: Full
• Remote Receiver Ports: 4
• Resolution: 2048
• Serial Out: SRXL2
• Technology: AS3X+
• Telemetry: Yes

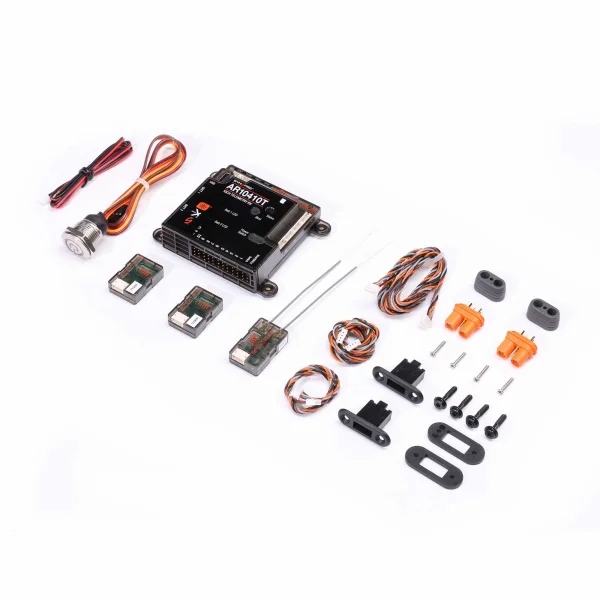

In The Box

• AR10410T 10-Channel PowerSafe Receiver
• SPM4651T SRXL2 Remote Serial Telemetry Receiver
• (2) SPM9747 SRXL2 DSMX Remote Receivers
• 9 in SRXL2 Remote Receiver Extension
• 12 in SRXL2 Remote Receiver Extension
• 24 in SRXL2 Remote Receiver Extension
• (2) Battery IC3 Connectors
• (2) Charge Receptacles
• Aircraft Telemetry Volt Sensor
• Soft Switch
• Instruction Manual
