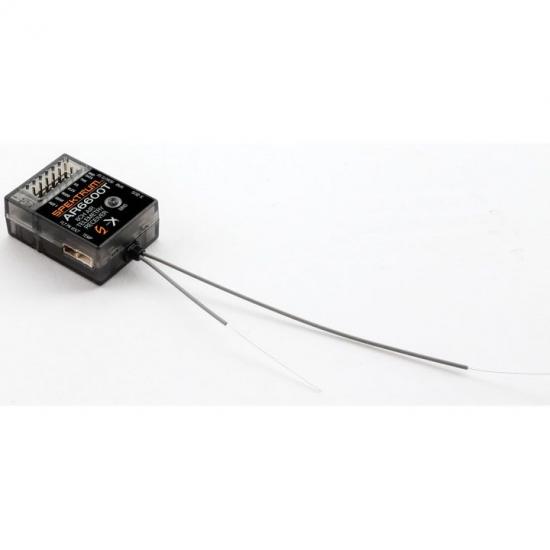

Spektrum ATR6600 6 Channel Air Telemetry Receiver

The Spektrum ATR6600 6 Channel Air Telemetry Receiver (SPMAR6600T) delivers full-range performance with integrated telemetry in a compact form factor. Built-in ports support RPM, flight pack voltage and temperature sensors, while the X-Bus interface allows further telemetry expansion. Flight Log and receiver pack voltage data are available without additional sensors, streamlining installation in aeroplanes and helicopters.

With an 11 ms frame rate when used with compatible DSMX/DSM2 transmitters, the AR6600T provides a fast, precise control feel suited to high-performance applications such as 3D helis and aerobatic aeroplanes. An included remote receiver enables Spektrum MultiLink technology to help reduce reflected signal fading and antenna blind spots, and dual antennas contribute to robust RF performance.

Key Features

• Suggested compatibility: Spektrum DSMX transmitters
• Compact 6-channel design for park flyer size and larger aircraft
• Capable of 11 ms frame rates for responsive control
• Integrated telemetry with built-in ports for RPM, flight pack voltage and temperature sensors
• X-Bus port for telemetry sensor expansion
• Receiver pack voltage and Flight Log data available without extra sensors
• Dual antennas for optimal RF performance
• Includes a remote receiver to enable Spektrum MultiLink technology

Specifications

• Channels: 6
• Telemetry: Yes
• Flight Log Compatible: Yes
• Modulation: DSMX
• Bind Method: Bind Button
• Range: Full
• Input Voltage: 3.5–9 V
• Data Port: Yes
• Antenna Length: 2.5" and 5" from case exit, 31 mm exposed
• Product Length: 1.47 in (37.5 mm)
• Product Width: 1.09 in (27.7 mm)
• Product Height: 0.62 in (15.8 mm)
• Product Weight: 0.44 oz (12.5 g)
• Failsafe: Yes
• Water-Resistant: No
• Rev Limiter: No

Designed for reliability and ease of setup, the Spektrum AR6600T pairs advanced telemetry with responsive control, making it a strong choice for sport and performance-focused RC aircraft.
