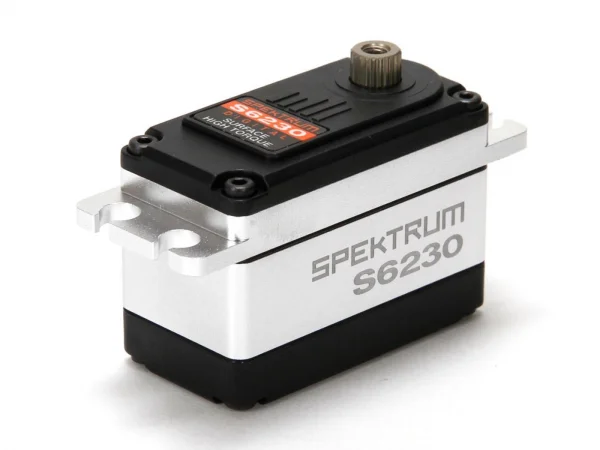

Spektrum S6230 Digital Surface Servo
Brand: Spektrum
Part No: SPMSS6230
Out Of Stock
Request Stock NotificationThe Spektrum S6230 Digital Surface Servo (SPMSS6230) delivers dependable high-torque performance in a compact, standard-size package. Built for durability with an aluminium case, metal gears and dual bearings, it offers precise control and long service life. A removable wire harness adds flexibility for neat installations and easier maintenance, while waterproofing helps keep you running in tough conditions.
Features
- Removable wire harness with different lengths available
- 7075 aluminium hard anodised output shaft/main gear with steel internal gears
- Aluminium case for effective heat dissipation
- Aluminium mounting tabs
- NMB dual main bearings
- 23T output shaft
- Waterproof construction
- 1-year limited warranty
Key Specifications
- Servo type: Digital, surface
- Operating voltage/input: 6.0V
- Maximum torque: 311 oz-in (22.4 kg-cm) @ 6.0V
- Rotation range: 120°
- Size category: Standard

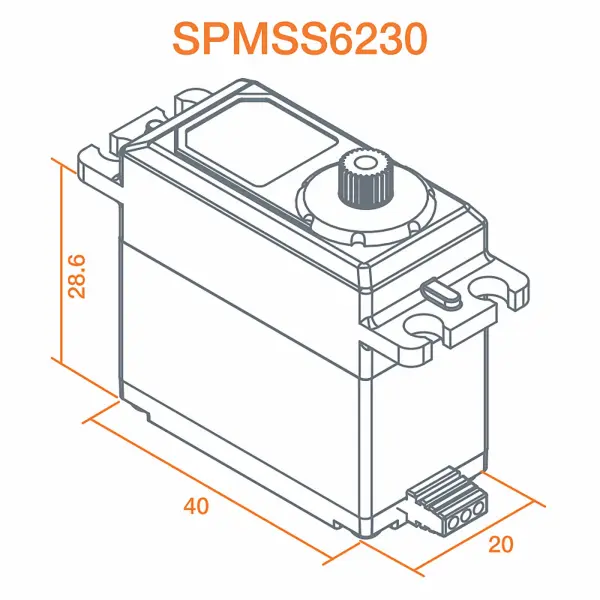

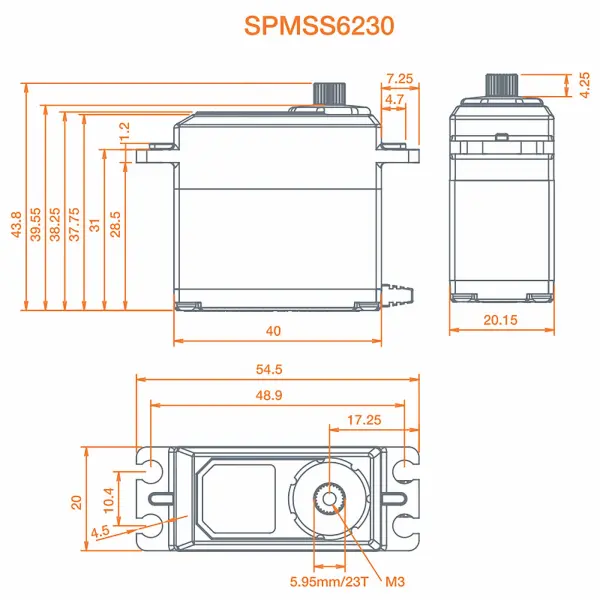

- Dimensions (L×W×H): 41 × 20.8 × 30 mm
- Weight: 59.5 g (2.1 oz)
- Spline: 23 teeth
- Gears: Metal
- Bearings: Dual
- Wire length: 200 mm (22 AWG)
- Current draw (idle/stall): 9.8 mA / 4.9 A @ 6.0V
Suggested Compatibility
- 1/10 scale crawlers
- 1/10 scale monster trucks
- General 1/10 to 1/8 scale surface applications
Secured by Stripe
The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6230 and S6240 offer high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or monster trucks where space is limited. The S6250 HV and S6260 HV are standard size servos for High-Voltage applications up to 8.4V, And the S6280 HV and S6290 HV feature all metal case construction for the ultimate 1/8th scale performance. All these servos feature Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.
Spektrum S6230 Digital Surface Servo Features:- Removable wire harness with different lengths available
- 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
- Aluminum case for good heat dissipation
- Aluminum mounting tabs
- NMB dual main bearings
- 23T output shaft
- Waterproof
- 1-Year Limited Warranty
Spektrum S6230 Digital Surface Servo Specfications:
- Application: Surface
- Product Weight: 2.1 oz (59.5g)
- Material: Metal / Plastic
- Programmable: No
- Servo Size Category: Standard
- Product Length: 1.61 in (41mm)
- Rotation Range: 120 deg
- Connector Wire Length: 7.87 in (200mm)
- Current Draw Idle: 9.8 mA @ 6.0V
- Product Width: 0.82 in (20.8mm)
- Maximum Servo Torque: 311 oz-in (22.4kg-cm) @ 6.0V
- Input Voltage: 6.0V
- Part Type: Electronics
- Product Application: Surface
- Product Height: 1.18 in (30mm)
- Servo Type: Digital
- Current Draw Stall: 4900mA @ 6.0V
- Servo Operating Voltage: 6.0V
- Bearing: Dual
- Bushing Or Bearing: Bearing
- Gear Type: Metal
- Wire Gauge: 22 AWG
- Spline Count: 23 Teeth
Key Info:
- Brand: Spektrum
- Part No: SPMSS6230
- Barcode: 605482078532
- Max Voltage: 6v (NiMh)
- Gear Material: Metal
- Fitment: Option Part
- Fitment: Standard Part
