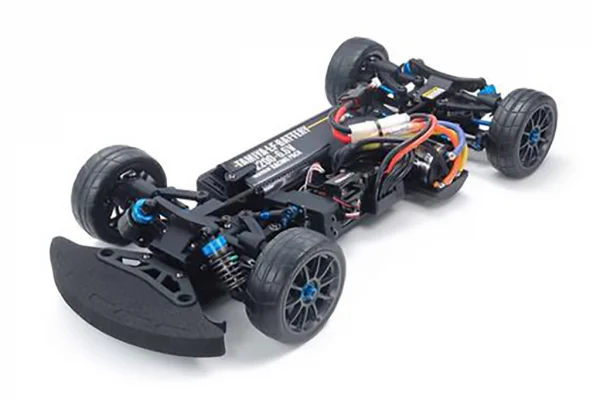

Tamiya TA08 Pro Chassis Kit

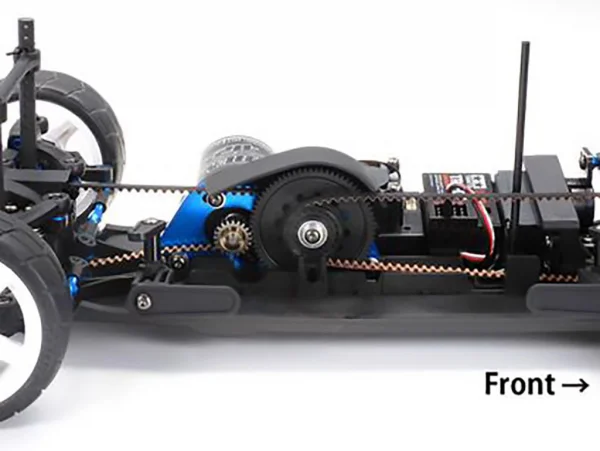

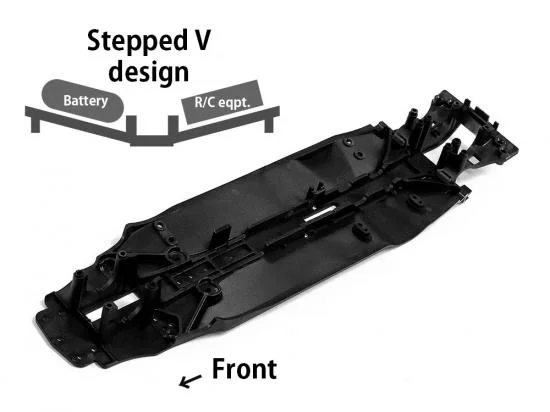

The Tamiya TA08 Pro Chassis Kit (HC-58693) is a 1/10 scale R/C touring car assembly chassis for serious on-road performance. Its Stepped-V shaped main chassis balances weight and rigidity, while the battery and steering servo are mounted at a slight angle (about 10 degrees) to minimise surface contact mid-corner and promote optimal weight distribution. The spur gear is positioned ahead of the motor for stable drivability, and the twin belt-driven 4WD layout employs TRF420 oil-filled gear differentials with steel TA07 differential joint cups.

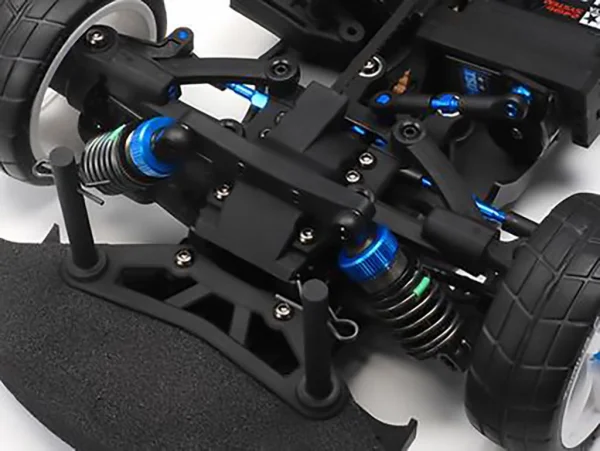

An A-arm suspension delivers a low centre of gravity with laid-down dampers, complemented by Super Short Big Bore shock dampers. Fine-tune handling with adjustable camber (turnbuckles) and caster (lower arm spacers). The kit includes universal drive shafts and full bearings for smooth, efficient running. Rotating body mounts 180 degrees allow switching between standard and 2mm advanced body positions, helping you tailor chassis balance to your chosen body.

Key Features

• 1/10 scale R/C touring car assembly chassis kit
• Stepped-V main chassis for balanced weight and rigidity
• Battery and servo angled (~10°) for improved cornering and weight distribution
• Spur gear positioned in front of motor for stable drivability
• Dual belt-driven 4WD with TRF420 oil-filled gear differentials
• Steel TA07 differential joint cups
• A-arm suspension with laid-down dampers and low centre of gravity
• Adjustable camber via turnbuckles; caster via lower arm spacers
• Supplied with Super Short Big Bore shock dampers
• Universal drive shafts and full bearings included
• Rotating body mounts switch between standard and 2mm advanced positions

Required to Complete

• 2-channel radio
• Short steering servo
• ESC
• Motor
• 190mm touring car body set
• Tyres
• 7.2–7.4V battery pack & compatible charger
