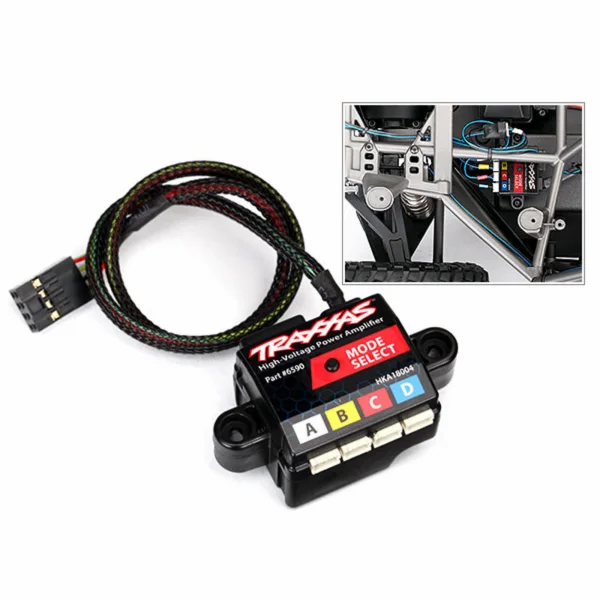

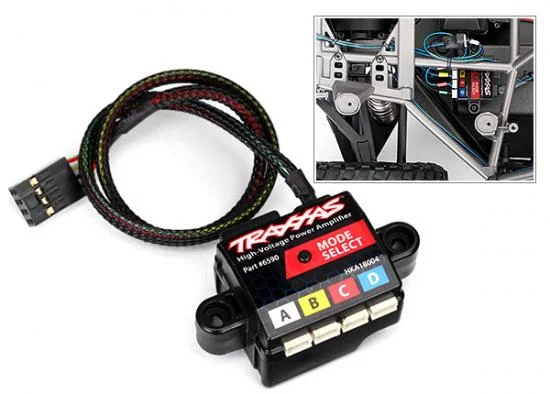

Traxxas High-Voltage Power AMPLIFIER

This high-voltage power amplifier is part of a family of compatible high-voltage port lighting accessories from Traxxas. Visit Traxxas.com for complete details on compatible high-voltage accessories for use with this amplifier. CAUTION! To prevent damage to the electronic speed control (ESC) and/or the high-voltage power amplifier, ensure the batter(ies) are disconnected before plugging the amplifier into the ESC.

High-Voltage Power Amplifier Installation:
1. Install the high-voltage power amplifier on the chassis. Ensure that the connectors on the amplifier face the front of the vehicle. Secure with the 3x12mm button-head screws (2) (Fig. 1).
2. Remove the 3x25mm button-head screws (2) from the electronic speed control (ESC) to remove the cooling fan cover (Fig 2).
3. Remove the accessory port cover (Fig. 2); then, reinstall the cooling fan cover on the ESC using the 3x25mm button-head screws. Be careful not to pinch the ESC wires during reinstallation.
4. Plug the 8-pin connector from the high-voltage power amplifier into the accessory port on the ESC (Fig. 3). The amplifier will turn on when the ESC is powered on

Kit Contents:
•     High-Voltage Power Amplifier
•     3x12mm button-head screws (2)

Change the high-voltage power amplifier settings and gain
access to additional functions using the Traxxas Link App
(available in the Apple App StoreSM or on Google Play™).
The TQi transmitter with the Traxxas Link Wireless Module
(part #6511, sold separately) are required.

• Brand: Traxxas
• Part No: TRX6590
• Barcode: 020334659002
