XRay GTXE 2024 Electric GT On-Road Kit XR350605

Brand: XRay

Part No: XR350605

£775.00 RRP £777.99

Usually ships next day

UK Delivery
Get it by Tuesday 24th Nov (Order within 23h 48m)
Store Collection (Cannock)
Monday 23rd Nov, once stock arrives

Finance options available at checkout.

Add-ons and accessories that go with the XRay GTXE 2024

Description

The XRay GTXE 2024 (part number XR350605) is an electric GT on-road car kit that includes complete aluminium front and rear suspension sets alongside the standard composite suspension parts. The aluminium sets cover front C-hubs with 6° caster blocks, steering blocks, rear uprights, graphite extensions and the hardware to fit them. The front parts are intended to improve steering and consistency, while the rear uprights are intended to add stability on and off power.

The chassis is CNC-machined from 3 mm Swiss 7075 T6 aluminium and anodised, with extra openings at the rear to help drivetrain cooling. Aluminium split bulkheads give access to the differentials after removing four screws at the rear or eight at the front, with the suspension still mounted. Eccentric bushings in the rear bulkhead allow diff height adjustment. The drivetrain uses high-volume differentials, a 46T crown gear matched to a 13T pinion, and central dogbone drive shafts with HUDY Spring Steel outdrives.

The E-concept layout places the motor ahead of the centre differential, opposite the steering servo, with split saddle-pack batteries at the rear to keep the centre of gravity low. A moulded electronics plate beside the servo carries the ESC, receiver and transponder so they can be removed easily for maintenance.

For set-up, the Integrated Suspension Settings system in the suspension holders allows geometry changes using eccentric bushings and shims. The big-bore shocks have 3-in-1 caps that can be built as emulsion, rebound or zero rebound to suit different track conditions. Medium front and hard rear suspension arms are fitted, and the car offers adjustment of caster, camber, toe, ride height, track width and Ackermann.

Included Highlights

  • Complete aluminium front and rear suspension sets
  • Graphite fan holder for two fans
  • Graphite horizontal body backstop set
  • Moulded electronics plate
  • HUDY Graphite Grease

Specifications

  • Chassis: 3 mm Swiss 7075 T6 aluminium
  • Front caster blocks: 6°
  • Crown and pinion gears: 46T and 13T
  • Spur gear adapter: suits 45T, 46T and 47T
  • Shock body inner diameter: 16.2 mm
  • Hex hubs: 17 mm, +2 mm offset

Specifications

All-New 2024:

  • Complete aluminum front & rear suspension sets included in the kit in addition to the standard composite suspension parts
  • Front aluminum c-hubs and steering blocks increase overall steering and improve consistency
  • Rear alu uprights increase stability on- and off-power
  • Graphite fan holder accommodates two fan to cool down motor
  • Graphite horizontal body backstop set reinforces the rear section of the body and provides additional protection in a crash

Alu Suspensions

The GTXE now includes the complete alu suspension set worth of 330€ / 363USD* with no additional charge.

The complete aluminum suspension set includes:

• Front C-hubs

• Front steering blocks

• Rear uprights

• Graphite extensions

• Hardware & accessories

* Suggested retail price without VAT. Additional VAT and taxes may apply. Prices may vary depending on the exchange rates.

Front Alu Suspension

Front aluminum suspension increases overall steering and improves consistency, making the GTXE much easier to handle and more reliable.

The ultra-strong construction ensures durability & long life.

Machined from premium Swiss 7075 T6, the front aluminum suspension is suitable for all track conditions.

Front Alu Suspension

Complete front alu suspension set is now included in the GTXE kit with no additional cost.

The front aluminum suspension includes steering blocks, caster blocks 6°, graphite steering plates, steel pivot joints and pivot balls as well all other necessary hardware.

Rear Alu Suspension

The aluminum uprights provide increased stability on/off-power, and the setscrews secure the hubs with reduced play for consistent handling.

The kit includes the aluminum uprights, along with the graphite camber link mounting plate, ball-bearings and all accessories, for a direct replacement of the standard composite hubs.

The camber link extensions are machined from lightweight carbon fiber to reduce the weight and feature 4 camber link positions.

The aluminum uprights from premium Swiss 7075 T6 aluminum are stronger; ensuring higher reliability and increased life time.

Rear Alu Suspension

The complete rear aluminum suspension includes rear uprights, graphite extensions with standard geometry and all other necessary hardware.

Body Backstop

All new 3-in-1 shock caps allow assembly in 3 different configurations – emulsion / rebound / zero rebound, to match shock dampening characteristics to various driving styles and different track conditions.

The Emulsion configuration uses an O-ring to seal cap to body, mixing oil and air inside the shock. Typically provides excellent traction on a variety of surfaces and is suggested as a starting point for most typical track conditions.

The Rebound alternative using the cell membrane is best matched to lower traction and flat slippery tracks. This shock set-up has the most rebound out of the three build options.

The Zero Rebound configuration created by using the ribbed membrane is better suited for super bumpy tracks. This set-up has no rebound.

GTX & GTXE Platform

Both GTX & GTXE platforms now include front & rear aluminum suspensions which are fully compatible between both platforms.

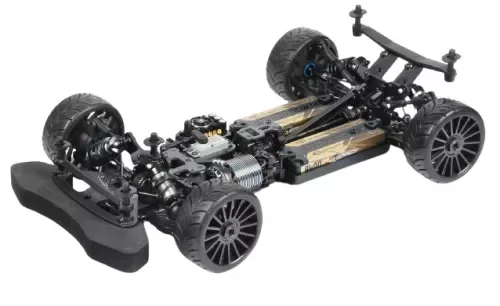

Chassis

The chassis plate accommodates aluminum bulkheads and features extra openings in the rear to improve drive train cooling for increased lifespan.

The chassis layout also includes mounting holes for the front suspension holder so the suspension can remain unchanged on the chassis when the front end of the car is disassembled.

The chassis features a locking system for the servo saver posts to ensure the components will stay secure during chassis flex in extreme conditions.

The chassis is CNC-machined from 3mm high-quality Swiss 7075 T6 aluminum; strategically machined in low-stress areas and then anodized to make it as light as possible without affecting strength or rigidity.

Bulkheads

Aluminum bulkhead framework increases reliability and strength while also allowing more airflow for cooling the drivetrain and easier, more convenient maintenance with super easy diff access.

Front & rear aluminum diff pinion adapters ensure significant improvement of the cooling of the ball-bearings for the pinion gears, increasing the lifespan of the driveline bearings.

Aluminum eccentric bushings offer a rear diff height adjustment.

The split design of the bulkheads gives super easy access to the differentials.

CNC-machined from high-quality Swiss 7075 T6 aluminum and black coated.

Diff Height Adjustment

The rear aluminum bulkhead features adjustable aluminum eccentric bushings for easy diff height adjustment.

Drivetrain Cooling

The aluminum bulkheads and chassis were redesigned to significantly improve drivetrain cooling by increasing airflow around the components, resulting in better lifespan and reliability.

Gear Differential

The high-volume differentials improve vehicle control and consistency over long runs and enhance reliability. The differentials feature large capacity cases and large internal gears with more teeth for improved differential moment. The large oil volume and the shape of the gear teeth reduce overheating. The diff pins have stronger design to improve reliability.

Diff Outdrives

Super-lightweight diff outdrives are machined from HUDY Spring Steel™ with unnecessary material removed from the outer part of the outdrives to reduce rotating weight without affecting durability. The inner portions of the outdrives are additionally hand-ground for maximum precision and fitment into the diff case.

The outdrives are hardened using HUDY’s own special hardening process to provide extended lifespan and reliability.

Matched Gears

The differential crown gear and pinion gear feature specially designed profiles of the 46T and 13T gears for a perfectly matched engagement that ensures super smooth operation, less drag and significantly longer lifespan.

Central Dogbone Drive Shafts

Central drive train features dogbone drive shafts to fit the aluminum bulkhead positions and outdrives with stronger M5 set screws for increased reliability.

The central dogbones are lighter than CVD drive shafts for reduced rotating mass and improved acceleration. They also allow for easy maintenance of the dog bone pins and outdrives, reducing servicing requirements.

All the drive shaft parts are machined from Hudy Spring Steel and hardened for durability and wear.

Easy Diff Access

The aluminum bulkhead design gives access to the differentials after removing only 4 screws in rear & 8 screws in front while leaving the entire suspension assembly mounted on the car.

Braces

To control the proper flex of the chassis, the GTXE includes front and rear braces. The rear brace is mounted directly to the rear aluminum bulkhead through an aluminum mounting plate.

A longer front composite brace makes the car more precise and easier to drive. The brace is mounted with two screws to the chassis for additional strength.

The longer rear brace is moulded from a medium-stiff composite mixture for proper flex control with optional graphite inserts available to reinforce the brace and make it even stiffer for high-traction conditions.

Shock Towers

Front & rear shock towers are matched to the alu bulkhead framework, with both featuring an additional row of shock absorber positions for super fine adjustments. The lower row allows less chassis roll for higher corner speed, while the upper row increases the roll to help increase traction. The rear shock tower features two locations for the rear wing mount position.

Front Top Deck

The graphite front top deck replaces the previous composite version and accommodates the aluminum bulkheads.

Servo Holder

The servo holder is designed to fit the saddle pack layout.

Steering System

The steering plate and servo saver posts accomodate the aluminum bulkheads and provide the proper geometry.

Bumper

The lightweight foam bumper is 40% lighter than the previous design. The foam bumper and bumper holder were redesigned to integrate with the aluminum bulkheads for proper support and protection.

Anti-Roll Bar

Ball bearing equipped front and rear anti-roll bar systems mount via aluminum collars to provide easy and precise adjustment while eliminating excessive play for consistent handling and performance.

Manufactured from spring steel material, anti-roll bars of different thickness are available for fine-tuning.

Uprights

The rear uprights feature graphite roll center plates with multiple mounting positions to match the whole range of offset wheel axles and to increase clearance between wheel and roll center plate when using narrower offsets.

Suspension Holders

The aluminum suspension holders continue to feature the Integrated Suspension Settings™ (I.S.S.) that allows for quick & easy suspension geometry changes.

The front suspension holder features a center mounting screw to keep the front suspension mounted on the car when other front end components are removed for easier maintenance.

Using the eccentric suspension bushings in the aluminum suspension holders and a few suspension shims, the GTXE suspension geometry can be completely adjusted in seconds for quickly dialing in settings for any track condition

Front C-hub

Front C-hubs were specially developed for the GT on-road platform. After extensive tests of various caster angles, the final 6° caster block was selected as the best choice to work in the wide range of racing conditions found at GT events.

The C-hub geometry significantly improves steering characteristics over the previous 16° hubs. The reduced caster angle also helps to reduce tire wear, creating more consistent handling during longer main events.

Ackermann Plates

The steering blocks feature steering Ackermann plates that improve corner entry steering by increasing the outside wheel angle.  Machined from graphite, the plates are easy to mount to the steering blocks for replacement or adjustment.

Upper Links

The shorter front and rear upper camber links match the rear hub graphite camber extensions and front and rear inner camber link positions to make the car more reactive in front and provide more rotation from the rear suspension.

Servo Saver

The servo saver features conical spring that is longer and stronger. The spring ensures more precise steering and improved reliability.

The servo saver posts feature locking system that keys into the chassis plate to ensure the servo saver setting will not change while running.

To improve servo saver reliability (especially in dusty conditions), it is moulded from a graphite material that is more resistant and efficient in dusty conditions. The dual-arm steering system is simple yet effective, featuring an integrated easily adjustable servo saver, and a Swiss 7075 T6 aluminum steering plate.

Ackermann is easily adjusted by changing steering link mounting positions on the steering plate. Bump steer is adjusted by inserting shims between the steering plate and steering linkage.

Spur Gear Adapter

A smaller gear adapter works with 45T, 46T, and 47T spur gears, offering an expanded range of ratios to match the gearing requirements for maximum motor performance.

Diff Gears

Differential main gears are manufactured from HUDY Gear Steel on a precision manual gear machine. The material was specially formulated and developed for use in gears. All gears are hardened to provide the longest possible lifespan.

Electronics Plate

GTXE includes a molded electronics plate that is positioned next to the steering servo.  The ESC, receiver and transponder are all installed on this plate for easy removal and maintenance.

Battery Holder

The new saddle pack layout features tweak-free split battery holders to secure the packs. These battery holders will fit both standard and ‘shorty’ packs, with the shorty packs allowing additional weight balance control by shifting them front/back in the holders.

Low CG Layout

The E-concept layout uses a forward motor position and saddle pack batteries. The motor is placed in front of the center differential, opposite the steering servo, with split, saddle pack batteries in the rear. The split packs lay flat in the holders, reducing the CG compared to taller brick pack layouts. The motor has better cooling in the front location, and the split batteries also maintain lower temperatures during each run.

Motor Mount

The motor is connected to a mounting plate, with the assembly then inserted into an integrated motor holder/drivetrain support. The design of this system allows quick & easy motor rotation to adjust gear mesh, and then clamping into position to prevent further movement.

The motor mount is machined from Swiss 7075 T6 and is 2mm wider for improved durability.

Suspension Arms

Both front and rear suspension arms are now softer than the previous GTX kits. In comparison to the extra-hard suspension arms included in previous GTX kits, the latest GTX features Medium front and Hard rear suspension arms. This combination of arms helps to increase traction in every track conditions.

Shock Extensions

Aluminum suspension arm extensions create geometry specific for the needs of the GT category. The shock extensions increase stability and improve the corner speed.

Shocks Absorbers

Longer front & rear shock shafts are now +3mm longer for increased set-up possibilities and to allow more suspension travel.

The shock caps feature 4 bleed holes for easier building and more precise rebound control. Multiple shock membrane choices are available to tune the suspension to a wide variety of track conditions.

Oversized big-bore shocks featuring 16.2mm I.D. shock bodies are externally threaded with an adjustable collar for quick & easy spring preload adjustment. The shock bodies are hardcoated in a titanium color and feature a 1-piece alu shock cap.

Shock Pistons

Ultra-precise shock pistons feature 6-, 8- and 10-hole options. The big-bore pistons are molded from tough, well-proven Delrin® material for smooth action and durability. The precision molding production process ensures perfect piston roundness after production, so that the pistons move super-smoothly inside the shock bodies for identical, perfect action in all shocks.

Shock Springs

The shock springs were specially developed for GT on-road racing. XRAY shock springs are manually measured, selected, and matched into pairs to guarantee precisely equal length and damping characteristics.

Hex Hubs

Ultra-lightweight 17mm wheel hex drive hubs are CNC-machined from Swiss 7075 T6 black-coated aluminum. GTX includes +2mm off-set both front and rear.

The alu hex hubs are specially machined to reduce rotating weight while guaranteeing wobble-free wheel mounting.

Ball-Bearings

The drivetrain ball-bearings are greased instead of oiled to maximize the lifespan of the ball-bearings, especially in dusty conditions. For increased reliability, the front and rear transmission ball-bearings as well the 2-speed ball-bearings feature metal shields.

Rear Diffusor

Optional diffusor #301233 with #351235 graphite adapter used at the rear of the car helps to increase downforce that improves stability and makes the car easier to control at high speeds.

Turnbuckles

To guarantee maximum reliability, all turnbuckles are manufactured from a special blend of HUDY Spring Steel™ which is specifically formulated for turnbuckles. The turnbuckles have a tougher core and are well suited for steering system and rear upright linkages.

Adjustment Possibilities

The GTXE features fully-adjustable front & rear suspension geometry. For quick & easy adjustment, we recommend using set-up tools and accessories from HUDY, the world leader of RC tools.

The extensive and impressive range of adjustment possibilities includes: Caster, Camber, Toe, Kick-up, Anti-dive, Anti-squat, Ride height, Downstops, Track-width, Lower roll center, Upper roll center, Bump steer, Wheelbase, Ackermann, Fully-adjustable shocks, Adjustable front and rear differentials, XRAY Multi-Flex™

Chassis Balance

The chassis design focuses on balanced weight distribution and weight transfer. Centerline holes are pre-drilled in the chassis plate for easy balancing with the HUDY Chassis Balancing Tool #107880.

Silicone Oils

HUDY Exclusive Silicone Oils are manufactured in Europe and each batch is laboratory tested and calibrated to ensure the highest possible consistency and quality from batch to batch. Based on the industry-standard cSt rating, the new line of oils will be easy to identify, adjust, and feel.

When following any set-up sheets by XRAY or XRAY team drivers, you can be sure that the oils you will get for your car are exactly same as those used by the factory racing team, thus ensuring very exacting set-ups and handling.

HUDY Chem Series.

Graphite Grease

The GTXE includes premium HUDY Graphite Grease - a high-performance, advanced-technology semi-fluid lubricant which incorporates both extreme pressure additives and finely-dispersed graphite for superior load carrying.

HUDY Graphite Grease is intended primarily for the lubrication of rotating parts and loaded gears. In addition to providing outstanding load carrying, it is formulated to have excellent adhesion and resistance from "flinging off" under extreme conditions. HUDY Graphite Grease reduces wear and increases parts life.

Click here for more information of the full HUDY Grease range



Key Info:
  • Brand: XRay
  • Part No: XR350605
  • Barcode: 8581703506058
  • Scale: 1:8
  • Power Source: Electric - No Motor
  • Surface Type: On Road
  • Vehicle Type: Touring / Rally Car
  • Build Level: Unassembled (Kit)
