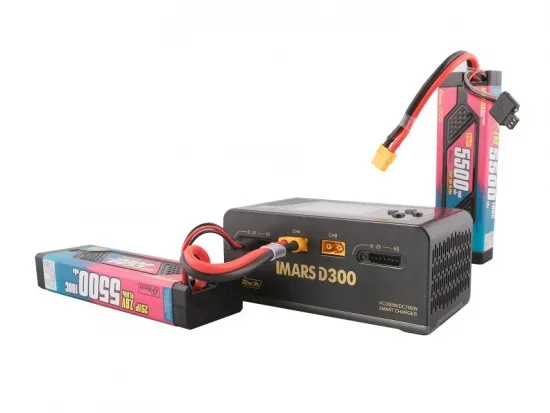

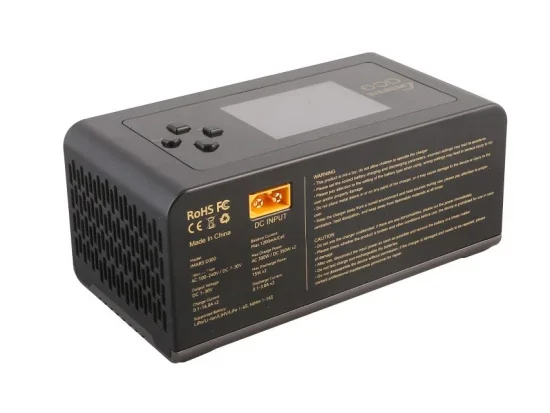

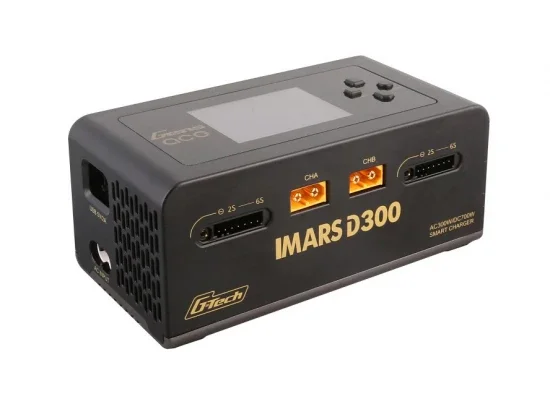

Gens Ace IMars Dual G-Tech Charger 300/700W

The Gens Ace IMars Dual G-Tech Charger 300/700W (O-GAC300DUALGT) is an intelligent dual-channel AC/DC smart balance charger designed for RC batteries. As part of the G-Tech ecosystem, the iMars D300 automatically identifies G-Tech smart packs via the smart balance connector, reading battery type, voltage and manufacturer-recommended charge current. For non-smart batteries, simply select the chemistry and working mode manually.

Compact and portable with a wide-view 2.4 inch IPS LCD, this charger delivers up to 16A per channel with high power capability: 300W on AC and up to 700W on DC input. A controlled heat dissipation system and multiple protection features provide added peace of mind during charging.

Operating Modes

• Charge
• Discharge
• Balance
• Storage
• ExtDischarge
• SyncCharging
• Digital power supply

Features

• Dual channel AC/DC smart balance charger
• Small, lightweight design with wide-view IPS display
• High power charging: up to 16A on one channel, AC 300W, DC 700W, worldwide 100–240V AC input
• External discharge feature
• Synchronous output for 2-in-1 fast charging
• Built-in DC power source for external devices
• Controlled heat dissipation system
• Advanced safety with UL94-V0 flame retardant grade materials
• Protection against short circuit, over-current, overcharge and over-voltage
• Supports Gens Ace G-Tech smart charging

Specifications

• Input Voltage: AC 100–240V; DC 7–30V
• Output Voltage: DC 1–30V
• Max Input Current: DC 34A
• Maximum Charging Power: AC 300W; DC 350W × 2
• Max Discharging Power: 15W × 2
• Charge Current: 0.1–16A × 2
• Discharge Current: 0.1–3A × 2
• Cell Balancing: 1–6S
• USB Output: 5V / 2.4A
• Display: 2.4 inch IPS LCD
• Supported Battery Chemistry: LiPo / LiHV / LiFe 1–6S; NiMH 1–16S
• Weight: 530g
• Dimensions (L×W×H): 145 × 76 × 62mm

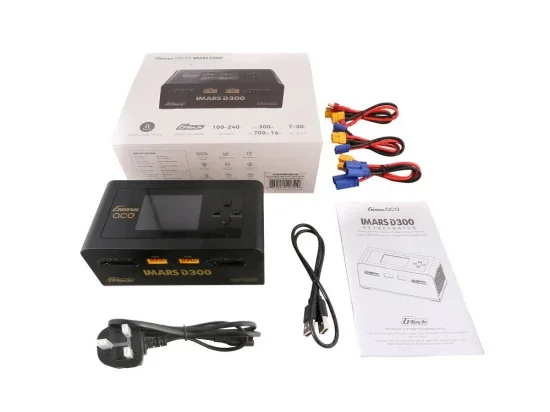

In The Box

• IMars D300 Charger
• UK power lead
• USB charge lead
• XT-60 to T-Type connector
• XT-60 to EC3 connector
• XT60 to EC5 connector
• Instruction manual
