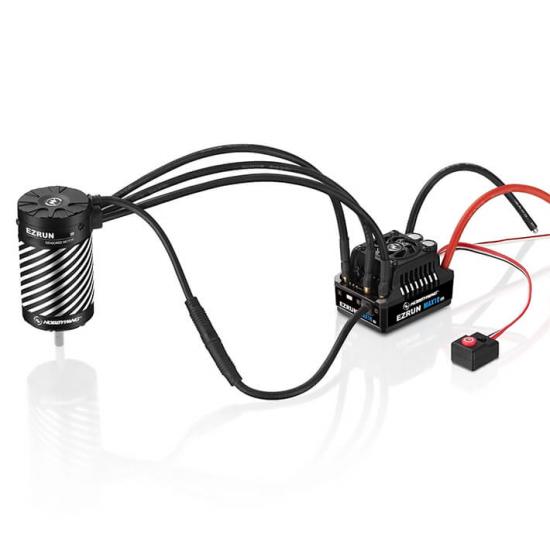

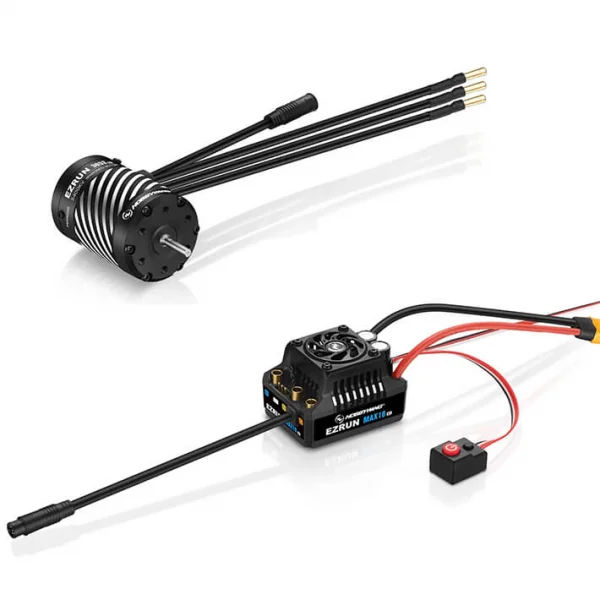

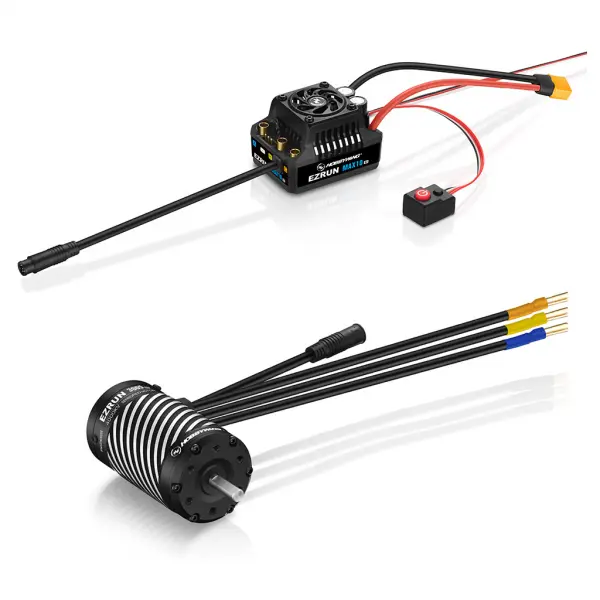

Hobbywing MAX10 G2 80A ESC Combo With 3652SD 4100Kv G3 Motor
Brand: Hobbywing
Part No: HW38020347
In Stock: Usually ships same day
The Hobbywing MAX10 G2 80A ESC Combo with 3652SD 4100Kv G3 Motor brings the latest EzRun control and efficiency to 2–3S brushless setups. The Max10 G2 ESC features an upgraded waterproof sensored interface and enhanced sensored drive for a precise, connected feel, designed to pair with EzRun 3652/3665 SD G3 motors. Smart thermal management, expanded capacitance and advanced freewheeling all contribute to smoother power delivery and cooler running.
Key Features
- Improved waterproof sensored cable interface and upgraded sensored mode for refined control; optimised to match EzRun 3652/3665 SD G3 motors.
- Turbo timing adjustment up to 32°, and with EzRun 3652/3665 G3 motors can deliver up to 25% higher maximum speed.
- Smart start–stop technology for the frameless fan: reduced noise and power draw, with the fan activating only when temperatures rise.
- 74% increase in total capacitor capacity with overheat protection for stronger, more reliable power delivery.
- Smart freewheeling improves drive efficiency and reduces operating temperatures by approximately 25°C versus the previous generation.
- Connect an OTA Bluetooth module to view real-time data (throttle, voltage, current, temperature, speed, etc.) and access data logging via the mobile app.
- IP67 waterproof and dustproof protection for confident running on mud, sand, ice, snow and through water.
Specifications
- Motor: EzRun 3652 SD G3
- KV: 4100
- P/n: 30402605
- LiPo: 2–3S
- Resistance (R): 0.00696Ω
- No-load Current: 5.0A
- Timing: 0°
- Motor Diameter & Length: Φ=37 / L=53
- Shaft Diameter & Length: Φ=3.17 / L=15
- Poles: 4
- Weight: 227.9g
- Part Number: HW38020347
Secured by Stripe
- The EzRun Max10 G2 features an improved waterproof sensored cable interface and an upgraded sensored mode to achieve a great sense of control feel and perfectly matches the EzRun 3652/3665 SD G3 motors.
- Supports Turbo timing adjustment of up to 32 degrees, and in combination with the EzRun 3652/3665 G3, the maximum speed is 25% more with greater effect.
- The smart start-stop technology is introduced to the Max10 G2 ESC. The frameless fan will not be enabled to reduced noise and saving power. The fan will only work when the temperature rises to a certain level.
- Compared with the previous generation of the MAX10 ESC, the total capacitance of the capacitor is increased by 74% and is overheating protected. The functions improve the power delivery from the battery to the ESC to avoid it from overloading and causing capacitors to explode.
- Smart freewheeling technology enables the MAX10 G2 to have higher drive efficiency than the previous generation, resulting in lower operating temperatures and a minimum temperature of approximately 25°C lower than the previous generation.
- After connecting the ESC with the OTA Bluetooth module, you can view the data (throttle amount, voltage, current, temperature, speed and etc) in real time through the mobile app to know the running status; The history of the running status can also be viewed by data logging.
- The IP-67 waterproof system guarantees excellent waterproofing and dustproofing protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.
Ezrun Series:3652 SD G3
KV: 4100
P/n: 30402605
LiPo: 2-3S
R. (Ω): 0.00696Ω
No-load Current: 5.0A
Timing (deg.): 0
Motor Diameter & Length: Φ=37 / L=53
Shaft Diameter & Length: Φ=3.17 / L=15
Pole: 4
Weight (g): 227.9g
Key Info:
- Brand: Hobbywing
- Part No: HW38020347
- Barcode: 6938994407533
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
It would fit but only run 2s lipo , you would be better with this HW38030207 that will run 2s or 3s and has more torque.
Hi we would recommend this one HW38020346
4100kv is too high and could only be run on 2s lipo whereas the 3300kv can run 3s lipo for more speed.
You would also need this receiver SPMSR215 or swap the whole transmitter and receiver for this KNNS0030
We would only advise lipo batteries with that system.
Yes this would work for you, and run on Nimh batteries
This will fit that car, but we find the ESC to have a big footprint, so depending on what you are doing with the car we would possibly advise looking at something more like these
The 4100kv will be too much rpm on 3s the 3300 is the much better option.
This would work with that car but will be a tight squeeze for the ESC and would require you using a low profile servo
No, this is for a 1/10th scale car, you would need this one. HW38010400
Yes that will work but only 2s lipo you would be better with a lower kv like this HW38020346
Yes that would be a good combo to go in that car.
