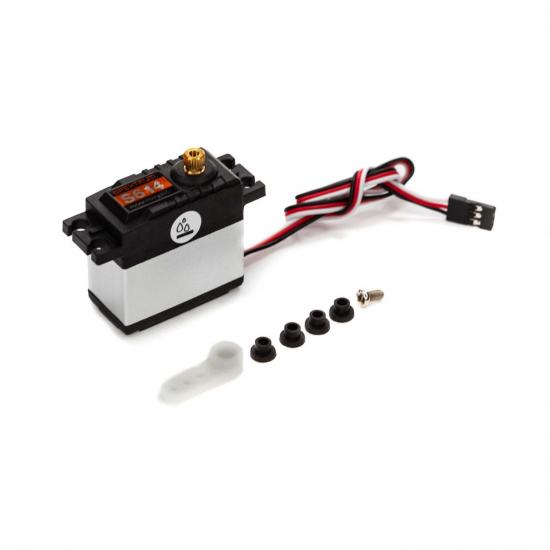

Spektrum S614 23T Metal Gear Servo (WP) - SPMS614

The Spektrum S614 Metal Gear Servo 23T WP (SPMS614) is a standard-size digital surface servo engineered for dependable performance in a wide range of RC surface applications. Its water-resistant design, dual bearings and brass metal gears offer a robust, smooth drive with solid holding power. At 6.0V, the S614 delivers up to 201.4 oz-in (14.5 kg-cm) of torque.

This servo features a 23-tooth spline and a universal connector for straightforward installation, plus a 264 mm lead for flexible routing. The compact 46 x 20 x 41 mm case and 62 g weight make it a practical choice where a standard-size footprint is required.

Key Specifications

• Application: Surface
• Servo Type: Digital (brushed motor)
• Operating/Input Voltage: 6.0V
• Maximum Torque: 201.4 oz-in (14.5 kg-cm) at 6.0V
• Gear Type/Material: Metal, brass
• Spline: 23-tooth (23T)
• Bearings: Dual
• Size Category: Standard
• Connector: Universal; lead length 264 mm
• Dimensions (L x W x H): 46 x 20 x 41 mm
• Weight: 62 g (2.2 oz)
• Water-Resistant: Yes
• Programmable: No; Overload Protection: No

Suggested Compatibility

• Standard-size surface installations requiring a 23T spline servo
• Systems using a 6.0V supply with a universal-style connector
