GMade GS01 Komodo Kit

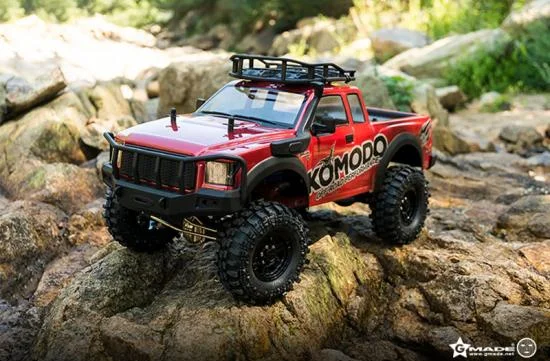

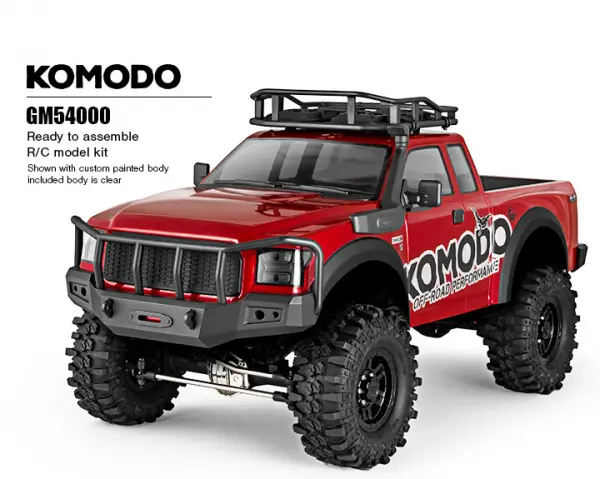

GMADE 1/10 GS01 KOMODO TRUCK SCALE CRAWLER KIT

The Komodo is designed for scale performance and great looks with or without a body. The GS01 Chassis with a new 4-Link suspension systems and steel ladder C channel frame makes for a great rig and scale finish. The steel has been nickel plated to resist corrosion, and looks great too! Next add a dust proof receiver box that has been moulded to look like a real engine cover. The receiver box also provides a spot to mount your ESC to keep your rig looking clean.

To help push performance to the max, an adjustable battery tray offers the lowest possible centre of gravity, while allowing for the use of a variety of packs. The centre skid plate is designed to run smoothly over any surface without getting stuck.

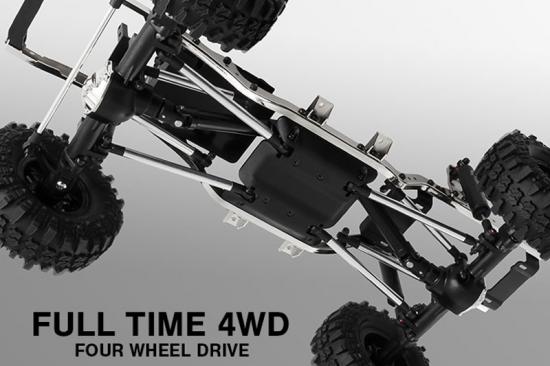

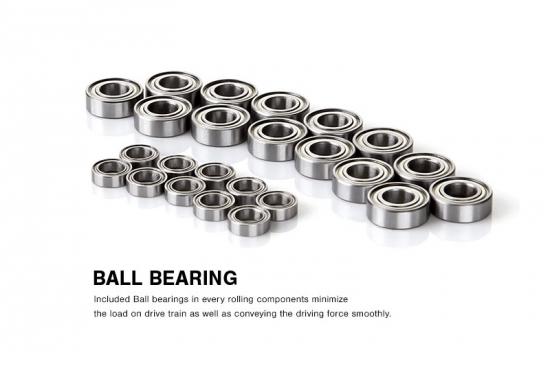

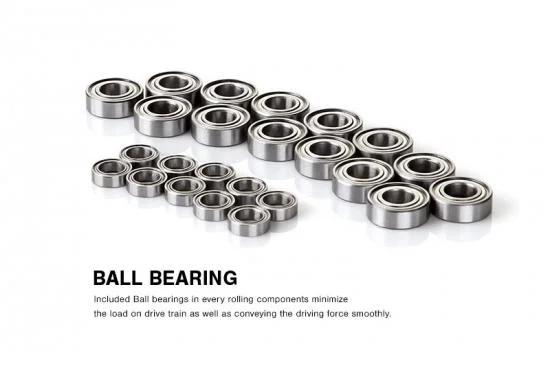

The 4-Link suspension has been designed to reduce torque twisting and give a smoother overall movement feel and along with the Gmade G-Transition shock absorbers helps to get the power to the axles. A dust proof transmission is used which features a metal-motor mount to keep everything precise and secure and running cool. The power is then transmitted to the axles with universal shafts and to ensure there is no loss of power every rolling component uses ball bearings. Where is all this power going? Out to the MT-1903 off-road tyres mated to NR02 1.9 inch beadlock wheels. This tyre and wheel combination provides excellent traction in almost any environment.

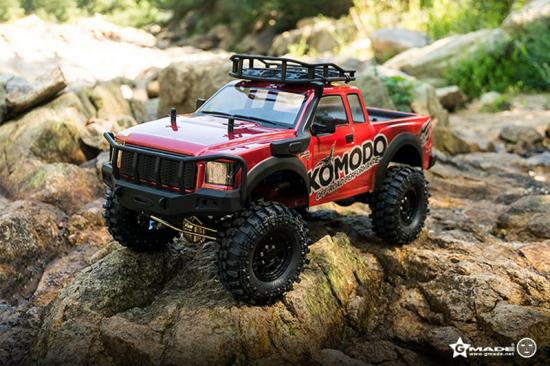

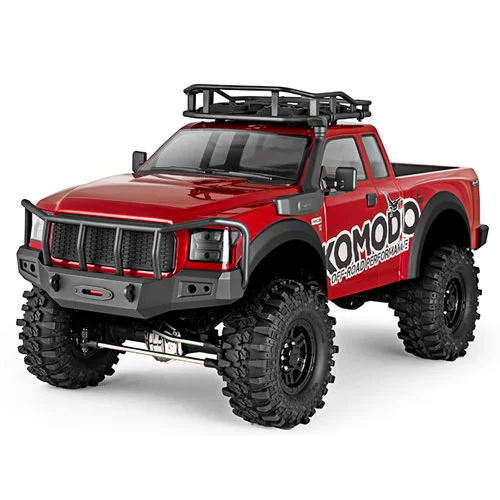

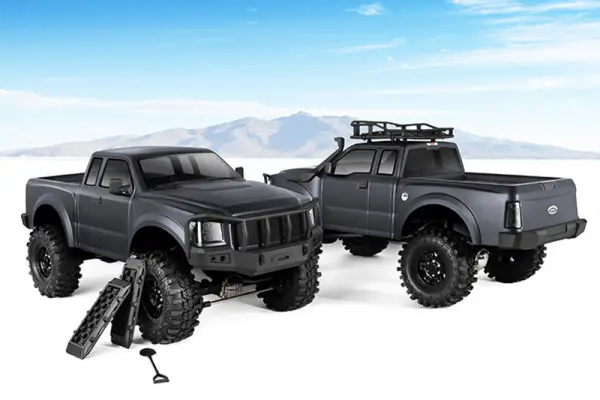

As we've come to expect from Gmade, the Komodo is packed with scale features. The 1.5mm lexan shell, based on a standard pickup truck, is supplied clear for you to add your own paint scheme along with a decal sheet for extra styling. The shell can be detailed with the included plastic parts; a front grille, mirrors, light buckets, wiper grille, door handles and heavy duty front and rear bumpers. Gmade have also added extra value in the accessories department. The Komodo comes packing a roof rack, bumper, snorkel, sand ladder, hooks and a shovel.
This really is their most realistic model to date!

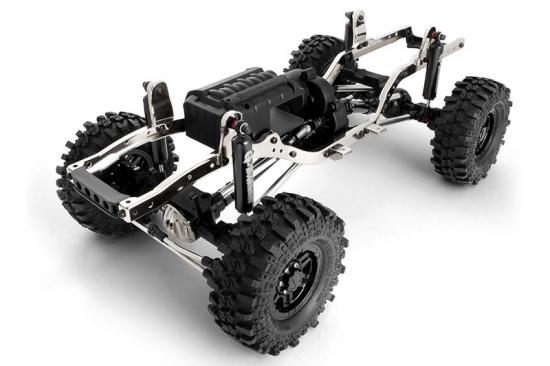

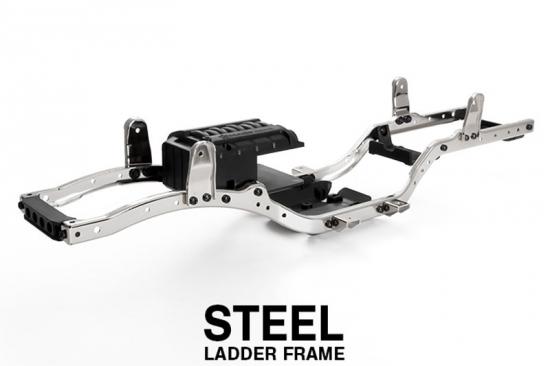

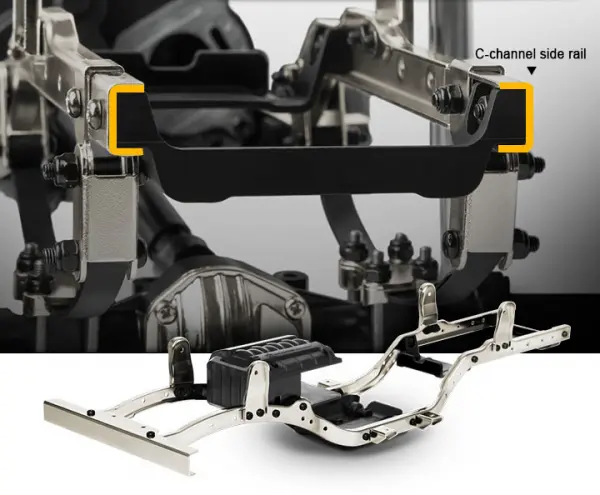

GS01 Chassis

The GS01 ladder frame is designed to look like the chassis of a real car and is made of high strength steel. The C-channel side rail offers added stability and is bolted with cross members to aid against twisting or warping. The steel parts are also nickel plated for a glossy look and are resistant to corrosion.

GS01 Drive Train

The one-piece graphite axle housing is made of high strength plastic for maximum durability and easy maintenance. Inside, both front and rear axles have solid differential gears to provide a stronger driving force in any driving conditions. The gears are protected by a glossy metal cover for added scale realism.

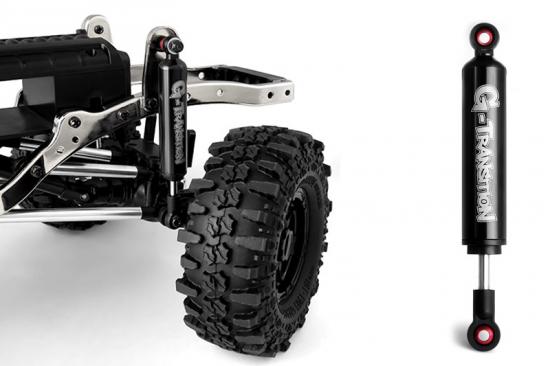

GS01 Suspension

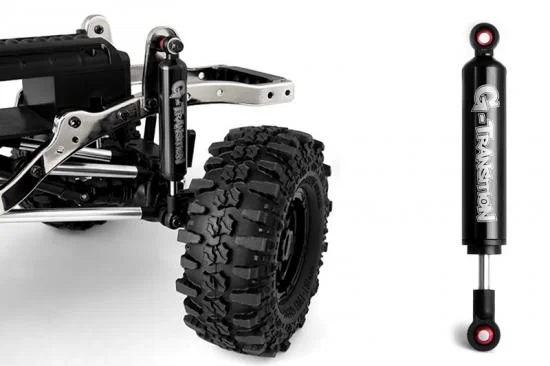

The G-Transition aluminium shock absorbers are oil filled with an internal spring providing a smooth shock action even over the roughest terrain, along with the 4-Link suspension system this beast has superior performance and delicate control over any terrain thrown at it.

  GS01 Adjustable Battery Plate

The GS01 battery plate is designed to offer the lowest centre of gravity to the chassis to enable a stable driving motion. It is also adjustable, allowing different batteries to be used while still being held securely.

Gmade Komodo Features:

• GS01 4-link suspension chassis
• Steel ladder frame
• Adjustable battery plate
• Dust proof receiver box
• Skid plate
• One-piece graphite axle housing
• Metal differential cover
• Solid differential gear
• Dust proof transmission
• NR02 1.9" beadlock wheel
• MT-1903 1.9" off-road tyre
• Clear lexan pickup truck body
• Bodyshell accessories and decal sheet

Spec Check:

• Width: 236mm
• Height: 247mm
• Height (without roof rack): 215mm
• Length: 506mm
• Wheel Base: 287mm
• Ground Clearance: 65mm
• Weight (no electric): 1.9kg

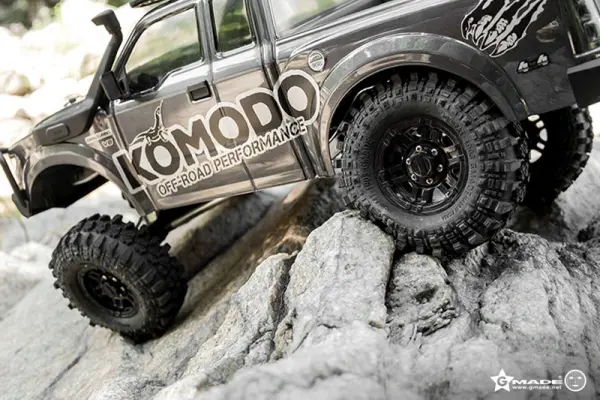

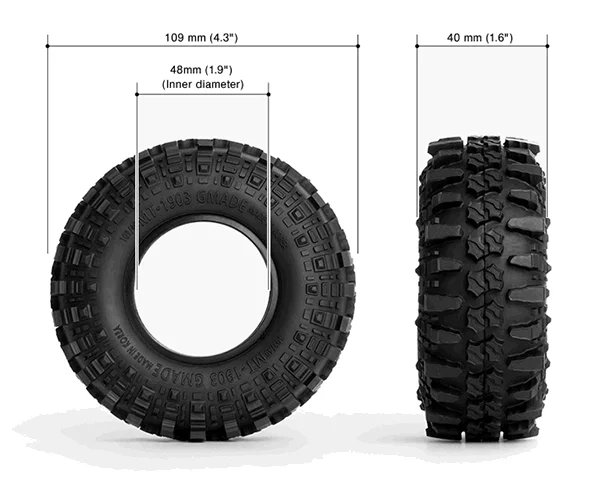

1.9 inch M/T Off-Road Tyre and NR02 Wheel

For ultimate grip the Komodo is supplied with Gmade MT-1903 Tyres on NR02 1.9 inch beadlock wheels. The super soft tyres provide a high level of traction when crawling but are also suitable for general off-roading.

Tyre Spec:

• Tyre Height: 109mm
• Tyre Width: 40mm
• Inner Diameter: 48mm

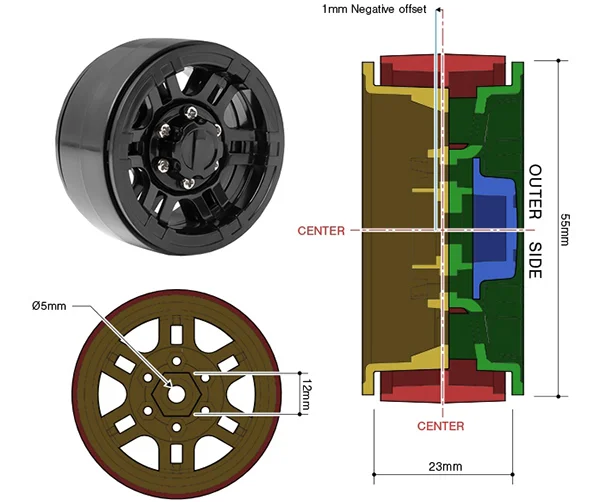

Wheel Spec:

• Wheel Diameter: 48mm
• Wheel Width: 23mm
• Wheel Hex Mount: 12mm
• Wheel Offset: 1mm Negative offset

PLEASE NOTE: This vehicle is sold in kit format and requires the following for completion: Radio control system, motor, ESC, servo, 7.2v battery and charger and paint.

• Brand: GMade
• Part No: GM54000
• Barcode: 8809366575014
• Scale: 1:10
• Power Source: Electric - No Motor
• Surface Type: Off Road
• Vehicle Type: Rock Crawler
• Build Level: Unassembled (Kit)
