Description

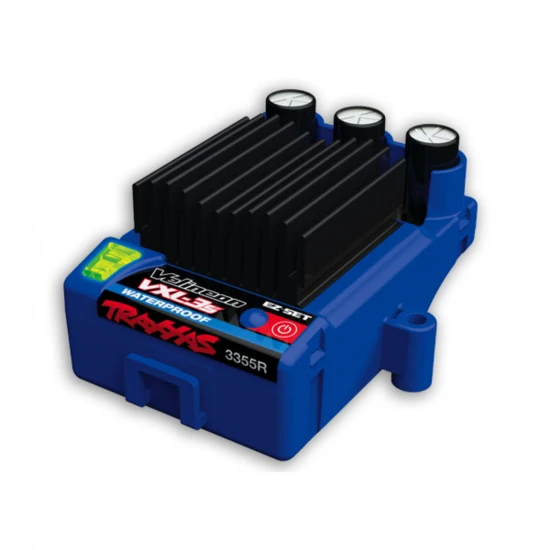

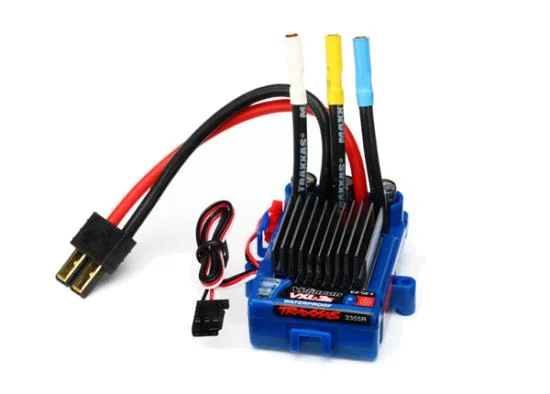

The Traxxas VXL-3s Waterproof ESC (part number TRX3355R) is a Velineon forward/reverse brushless electronic speed control for radio-controlled models. It is set up, operated and programmed with an EZ-Set push button in the same way as Traxxas XL-5 series speed controls, so anyone familiar with those units has no new procedures to learn. A multi-colour LED gives clear feedback during setup and use.
Three built-in drive profiles cover different driving styles: Sport Mode offers forward, brake and reverse, Race Mode offers forward and brake only, and Training Mode limits throttle to 50% for young or inexperienced drivers. When the driver is ready, switching profiles restores full throttle.
The ESC accepts batteries from 4-cell NiMH packs up to 3S LiPo packs (11.1 volt). Two-stage low voltage detection signals when a LiPo pack is nearing its minimum voltage. Protection features include two-stage thermal shutdown, locked rotor protection that cuts power if the motor is bound, and battery over-voltage protection that puts the ESC into failsafe mode.
Rubber seals and o-rings give the case water resistance, and a micro-fin aluminium heatsink dissipates heat. An auxiliary fan output can power a snap-on accessory fan for extra cooling. It comes assembled with 12-gauge Maxx Cable, gold plated 3.5 mm bullet connectors and the patented Traxxas high-current connector, and is backed by the Traxxas Lifetime Electronics Warranty.
Specifications
- Weight: 90 g
- Length: 55 mm
- Width: 39 mm
- Height: 33 mm
- Colour: Blue
- Material: Plastic
- Age recommendation: 14+
Secured by Stripe
Traxxas VXL-3s Waterproof ESC Manuals & Guides
Manuals & Guides
- Traxxas Velineon VXL-3S Brushless Power System Waterproof Manual (Part 1) (TRX3350R)
- Traxxas VXL-3s Waterproof ESC Manual (Part 1) (TRX3355R)
- Traxxas VXL-3s Waterproof ESC Manual (Part 3) (TRX3355R)
- Traxxas Velineon VXL-3S Brushless Power System Waterproof Manual (Part 1) (TRX3350R) – page 1
- Traxxas VXL-3s Waterproof ESC Manual (Part 1) (TRX3355R) – page 1
- Traxxas VXL-3s Waterproof ESC Manual (Part 1) (TRX3355R) – page 2
- Traxxas VXL-3s Waterproof ESC Manual (Part 1) (TRX3355R) – page 3
- Traxxas VXL-3s Waterproof ESC Manual (Part 1) (TRX3355R) – page 4
How-To Guides & Articles
Specifications
The Velineon VXL-3s forward/reverse electronic speed control simplifies brushless technology with easy, built-in profiles. It sets up, operates, and programs just like the Traxxas XL-5 family of ESCs so there's no tricky new procedures to learn. Traxxas' exclusive patented Training Mode is also included to limit full throttle to 50% for young or inexperienced drivers. For the most advanced users, the VXL-3s is equipped with two-stage low voltage detection to allow LiPo battery use, including powerful 11.1-volt 3S packs! The VXL-3s is manufactured by Traxxas to ensure the highest level of quality and support and is backed by the Traxxas Lifetime Electronics Warranty.

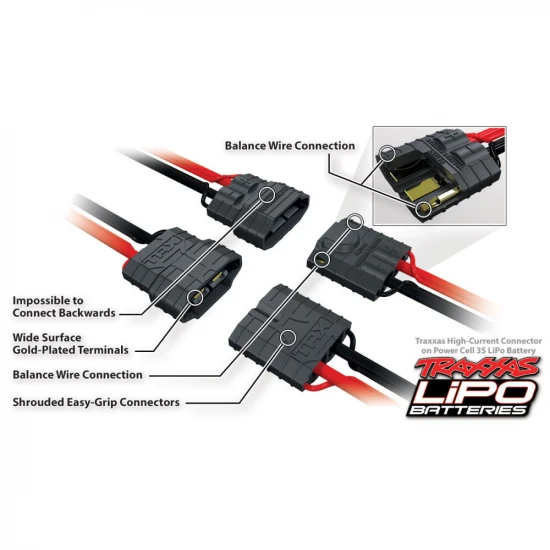

Traxxas High-Current Connector* The VXL-3s ESC is equipped with the patented Traxxas high-current connectors for restriction-free current flow.

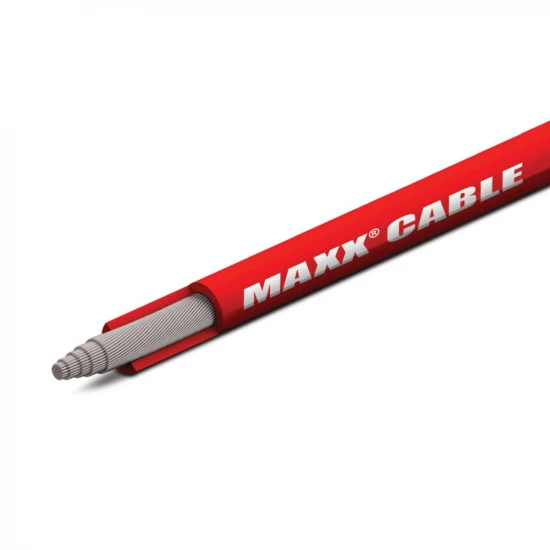

Assembled with Maxx Cable (12-gauge wire) This super-flexible, high-current, low-resistance 12-gauge, wire acts like a series of giant pipes, flowing energy in and out of the VXL-3s electronic speed control and into the Velineon 3500 motor. The patented Traxxas Connector combined with Maxx cable is a better engineered solution for extracting all the power your battery has to give.
Traxxas VXL-3s Waterproof ESC Key Features:
- Sport Mode' drive profile (forward / brake / reverse)
- Race Mode' drive profile (forward / brake)
- Training Mode' drive profile (50% forward / brake / 50% reverse)
- Patented Traxxas High-Current Connector eliminates a common bottleneck and maintains pure, unrestricted power flow from the battery to the brushless power system.
- Built-in two-stage low voltage detection for Lithium Polymer (LiPo) battery use provides a clear signal to the driver that the battery pack is nearing its minimum voltage threshold.
- Widest range of battery options ranging from 4-cell NiMH packs all the way up to 3S LiPo battery packs (11.1 volt)
- The patented Training Mode is an exclusive Traxxas feature that reduces the overall power output of the VXL-3s by 50%, making it easier for new or younger drivers to control their model. When they're ready, simply change profiles to unleash full-throttle action.
- The EZ-Set push-button setup operates and programs just like other Traxxas speed controls such as the XL-5. This eliminates the need to learn a new set of procedures.
- Multi-colour LED provides clear feedback
- Two-stage thermal shutdown protection protects the VXL-3s from overheating.
- Locked Rotor Protection prevents system damage by cutting power if the vehicle is stuck or the motor is bound.
- Battery Over-Voltage Protection causes the ESC to go into failsafe mode if the maximum input voltage is exceeded.
- Water resistant case design uses rubber seals and o-rings to protect against damage caused by water and moisture.
- Micro-fin aluminium heatsink dissipates heat.
- The built-in auxiliary fan output powers a snap-on accessory fan for increased cooling capacity during extreme use. A handy clasp on the speed control case keeps the wire neatly in place until you are ready to use it.
- Gold plated 3.5mm bullet connectors on 12-gauge Maxx Cable flow full power to the motor without performance strangling resistance.
Traxxas VXL-3s Waterproof ESC Tech Specs:
- Weight: 90g / 3.17oz
- Shipping Weight: 0.20kg / 0.43lbs
- Product Height: 33mm / 1.30in
- Product Width: 39mm / 1.54in
- Product Length: 55mm / 2.17in
- Age Recommendation: 14+
- Colour: Blue
- Material: Plastic
Key Info:
- Brand: Traxxas
- Part No: TRX3355R
- Barcode: 020334335586
- Motor Type: Brushless
- LiPo Compatible: Yes
