Tamiya M LW 1-Piece Aluminium Axle & Hub (HC-54996)
Brand: Tamiya
Part No: HC-54996
$30.19
RRP $33.74
Out Of Stock
Request Stock NotificationFinance options available at checkout.
Fits These Models (10)
Tamiya 1994 Mini Monte Carlo (M-05)
Tamiya 911 Carrera RSR 2.8 (BT-01)
Tamiya Fast Attack
Tamiya Lotus Europa SP (M-06)
Tamiya M-07 Concept Chassis Kit
Tamiya M-08 Chassis Kit
Tamiya Peugeot 306 Maxi (BT-01)
Tamiya Peugeot 306 Maxi with Blue Painted Body (BT-01)
Tamiya Volkswagen Karmann Ghia (M-06)
Tamiya VW Split Screen Type 2 T1 Bus (M-06)
Description
Upgrade your Tamiya M-chassis with the HC-54996 one-piece aluminium axle and hub. Machined from duralumin and hard-anodised, this lightweight assembly is around half the weight of the kit-standard 5 mm aluminium hex hub and axle, helping reduce load at the spring bottom.
Spacer changes allow you to alter axle tread to match the equivalent of 4 mm, 5 mm or 6 mm hex hubs. The parts attach using kit-included components, and have been shown fitted to the front of the M-08 Concept chassis.
Key Features
- Duralumin construction with hard-anodised finish
- Approx. half the weight of the standard 5 mm aluminium hex hub and axle
- Adjustable tread via spacers: 4 mm, 5 mm or 6 mm hub equivalents
- One-piece axle and hub design
Suggested Compatibility
- M-05, M-05 PRO, M-05Ra, M-05 Ver.II PRO
- M-06, M-06 PRO
- M-07 Concept
- M-08 Concept
Notes
- Uses kit-included fixings for attachment
- For detailed matching, consult the official Tamiya R/C Parts Matching List
Secure Payments
Secured by Stripe
Tamiya M Lw 1 Piece Aluminium Axle And Hub Manuals & Guides
How-To Guides & Articles
Specifications

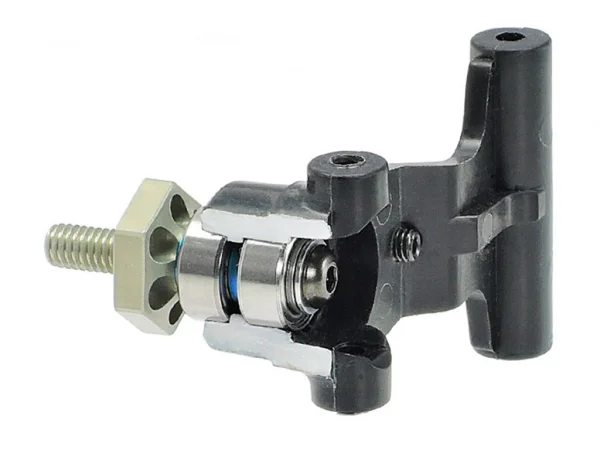

- These one-piece aluminum axle and hub parts are crafted in duralumin and given a hard anodized finish.
- Each is around half the weight of kit-standard 5mm aluminum hex hub and axle, to lighten the load on the spring bottom.
- Replace spacers to change axle tread.
- Left: This image shows an example of the components fitted to the front of the M-08 Concept chassis.

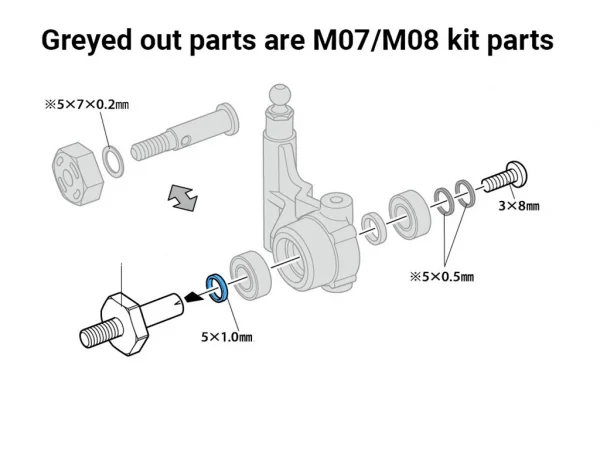

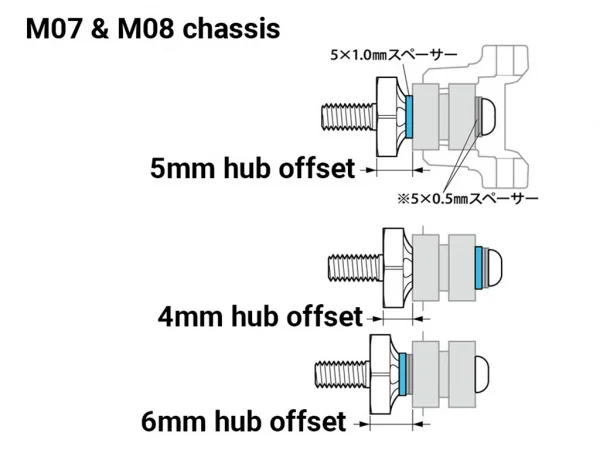

- Right: Parts are attached together with kit-included components. Change spacers for tread equivalent to 4mm, 5mm and 6mm hubs.
Compatible Chassis
M-05, M-05 PRO, M-05Ra, M-05 Ver.II PRO, M-06, M-06 PRO, M-07 Concept & M-08 Concept Chassis
*The official Tamiya R/C Parts Matching List has plenty of information regarding chassis compatible with Tamiya Spare and Hop-Up Option parts.
Key Info:
- Brand: Tamiya
- Part No: HC-54996
- Barcode: 4950344549962
- Fitment: Option Part
