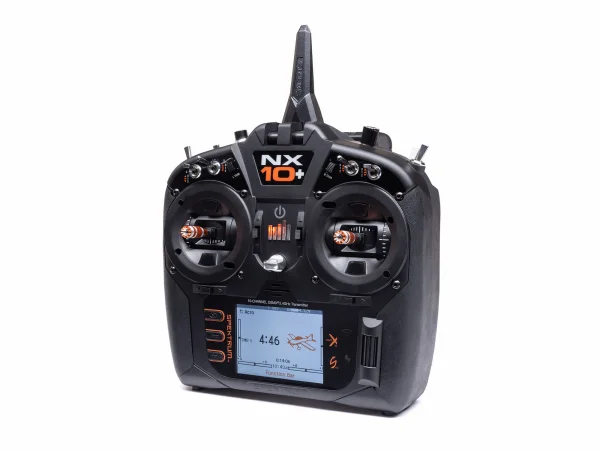

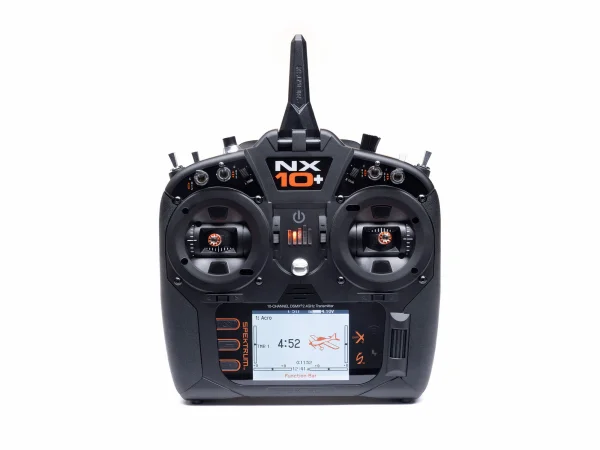

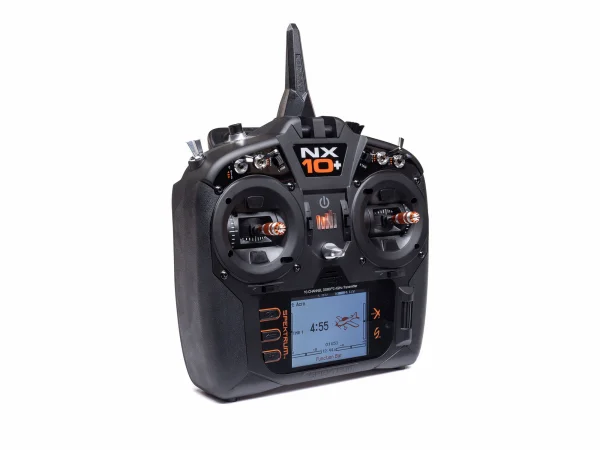

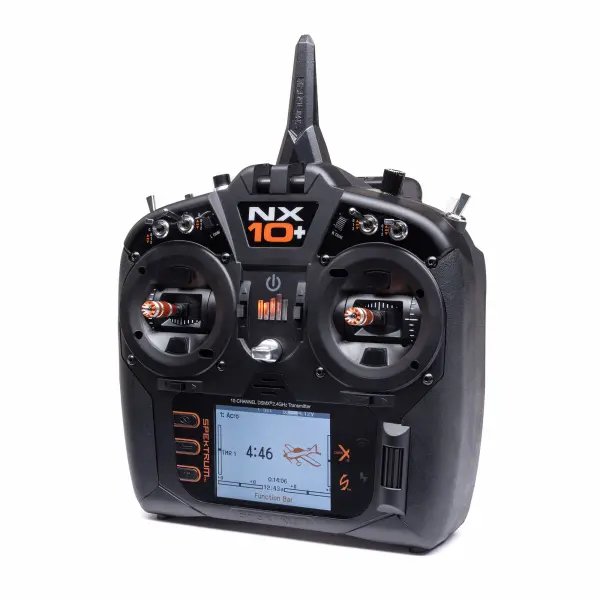

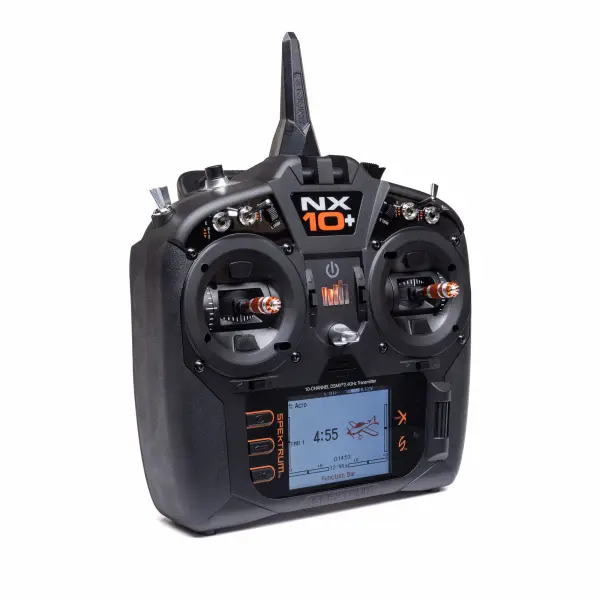

Spektrum NX10+ Transmitter Only (20-Channel)

Spektrum NX10+ 20-Channel DSMX Transmitter Overview

With the Spektrum™ NX+ series, you'll enjoy the versatility needed to operate your models to their fullest potential and to fly complex aircraft like EDFs and giant-scale balsa airplanes. That's just where the next generation NX10+ advantage begins. The NX10+ also incorporates many of the latest exclusive Spektrum™ innovations for a level of ease, efficiency, and performance that discriminating pilots demand.

Out of the box, the NX10+ is compatible with Smart Technology. It comes ready to support your Spektrum™ Smart batteries and Smart Avian™ ESCs so you can receive essential telemetry data at your fingertips in real time. The NX10+ radio's Wi-Fi connectivity adds even more convenience. In addition to completing product registration straight from the transmitter, you can download firmware updates instantly. Additionally, the transmitter features AS3X+ forward programming and the latest innovative Smart Model File loading from the receiver. It's a modern user experience.

More proven Spektrum™ radio expertise can be found in the NX10+ transmitter's ergonomic design. The contours, balance, and control positions combine to increase the accuracy of your inputs and provide unparalleled comfort. Hall-effect sensor gimbals offer long-lasting precision with an ultra-smooth feel that's adjustable from the front of the transmitter. An easy-to-use roller wheel interface simplifies programming, with a large 3.2" color display to make menus easy to read. Even a rechargeable 1S 6600mAh Li-Ion transmitter battery and magnetic USB Cable and Micro USB Adapter for convenient USB charging are included.

From its brilliantly designed display to the Wi-Fi connectivity plus built-in Smart Technology support and more, the NX10+ gives experienced pilots access to a wide array of Spektrum™ exclusive advantages and innovations. Fly your aircraft with next-level control — choose the 20-channel NX10+ transmitter from Spektrum™.

Spektrum NX10+ 20-Channel DSMX Transmitter Features

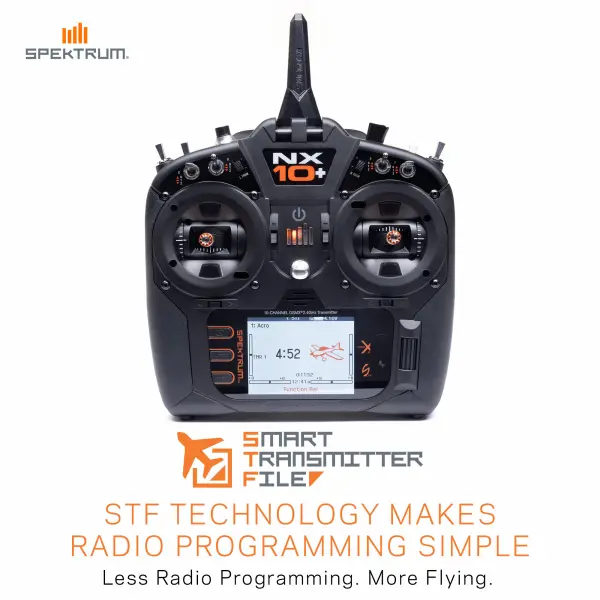

• Supports Smart transmitter file downloads
• Hall-effect gimbals
• Custom sound support and voice alerts
• Easy roller-wheel scrolling interface with Clear, Back and Function buttons
• USB port for battery charging, USB data transfer and simulator control
• Logic switches

• Superb ergonomics optimized for comfort and precise, fatigue-free control
• Integrated serial port for supporting 3rd party modules (*Serial port does not provide power. An external power source is required)
• 3.7V 6600mAh 1S Lithium-Ion transmitter battery and a USB cable for convenient USB charging

NX10 20-Channel DSMX Transmitter Only Specfications:

• Application: Airplanes, Helicopters, Sailplanes, Multirotors
• Audio: Alarms and Tones, Preconfigured Callouts
• Band: 2.4GHz
• Bind Method: Bind Button
• Channels: 20
• Completion Level: Transmitter Only
• Data Port: Yes
• Failsafe: Yes
• Flight Log Compatible: Yes
• Frame Rate: 11ms, 22ms
• Gimbal Type: Hall Effect
• Input Voltage: 3.7V
• Model Memory: 250
• Modes: User Selectable Mode 1-4
• Modulation: DSMX
• Operating System: Spektrum Airware
• Product Height: 5.5" (140 mm)
• Product Length: 12" (305 mm)
• Product Weight: 16 oz. (453.59g)
• Product Width: 9.3" (236 mm)
• Programmable: Yes
• Receiver: Sold Separately
• Resolution: 2048
• SD Card/Airware Capable: Yes
• Technology: Smart, Voice Alerts
• Telemetry: Yes
• Transmitter (Tx) Battery Type: 3.7V 6600 mAh LiIon
• WiFi: Yes

In The Box

• (1) Spektrum™ NX10+ 10-Channel DSMX® Transmitter
• (1) 6600mAh LiIon Transmitter Battery with a Magnetic USB Cable and Micro USB Adapter for USB Charging
• (1) NX10+ Transmitter Neck Strap
• (1) Product Manual

Needed to Complete

• (1) Compatible Spektrum™ receiver

• Brand: Spektrum
• Part No: SPMR10120EU
• Barcode: 660132952969
• Receivers Included: 0
• Frequency: 2.4Ghz
• Channels: 9+ Channel
• Fitment: Option Part
• Fitment: Standard Part
• Format: Stick
