Tamiya TT-02 Type SRX F Direct Cupt Jt

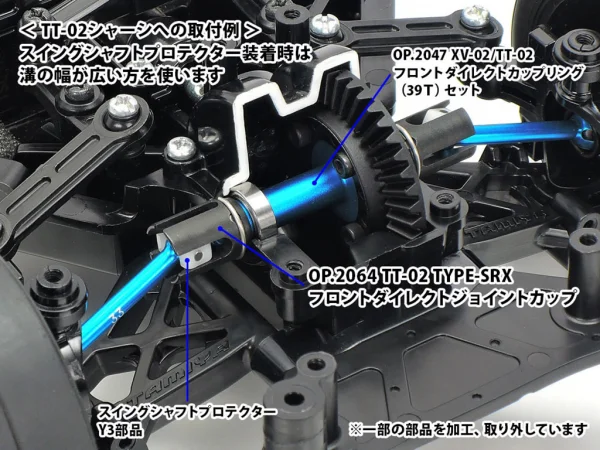

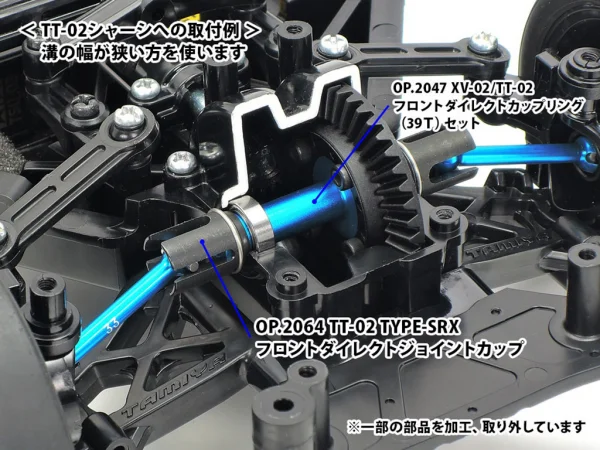

- These durable steel gearbox joints and plastic swing shaft caps can be used as spare parts for the TT-02 Type-SRX chassis, or when fitting separately sold Item 22047 XV-02/TT-02 Front Direct Coupling Set (39T) to the TT-02 chassis.
- Please note that some chassis may require use of other separately sold swing shafts or wheel axles.
- Contains two gearbox joints, four plastic swing shaft caps, two needle pins and two axle rings.

Compatible Chassis
TT-02 Type-SRX1 & XV-022 Chassis
*Please see below for a list of other required parts when using on various TT series chassis.
1: Fitted as standard.
2: Use with Item 22047 XV-02/TT-02 Front Direct Coupling Set (39T).

*The official Tamiya R/C Parts Matching List has plenty of information regarding chassis compatible with Tamiya Spare and Hop-Up Option parts.

When using on TT-02, TT-02D, TT-02R, TT-02RR and TT-01 chassis
Use with:
Item 22047 XV-02/TT-02 Front Direct Coupling Set (39T)
Item 22064 TT-02 Type-SRX Front Direct Cup Joints
Item 53499 Wheel Axles for Assembly Universal Shaft Set
Item 53500 Cross Joints for Assembly Universal Shaft Set
Item 54969 33mm Lightweight Aluminum Swing Shafts (2pcs.)


When using on TT-02 Type-S chassis (with front universal shafts)
Use with:
Item 22047 XV-02/TT-02 Front Direct Coupling Set (39T)
Item 22064 TT-02 Type-SRX Front Direct Cup Joints
Item 51445 TRF417 Wheel Axle (2pcs.)
Item 51444 TRF417 Cross Joint Set
Item 53506 39mm Lightweight Rear Swing Shafts for Assembly Universal Shaft Set


When using on TT-02 Type-S chassis (with front direct coupling)
Use with:
Item 22047 XV-02/TT-02 Front Direct Coupling Set (39T)
Item 22064 TT-02 Type-SRX Front Direct Cup Joints
Item 42373 39mm Drive Shafts for Double Cardan Joint Shafts (2pcs.)
Item 42221 Cross Joint for Double Cardan Joint Shaft (2pcs.)
Item 42218 Axle Shaft for Double Cardan Joint Shaft (2pcs.)
Item 42219 Joint Casing for Double Cardan Joint Shaft (2pcs.) ORItem 42320 Lightweight Joint Casings for Double Cardan Joint Shafts (2pcs.)


When using on TT-02 Type-SR chassis (with kit standard double cardan drive shafts)
Use with:
Item 22047 XV-02/TT-02 Front Direct Coupling Set (39T)
Item 22064 TT-02 Type-SRX Front Direct Cup Joints
Item 42373 39mm Drive Shafts for Double Cardan Joint Shafts (2pcs.)
*As TT-02 Type-SR double cardan shafts are 42mm as standard, only drive shafts need to be changed.



Key Info:

• Brand: Tamiya
• Part No: HC-22064
• Barcode: 4950344220649
