Tamiya TT-02 Oil Gear Diff Unit

Brand: Tamiya

Part No: HC-54875

£31.32 ~~RRP £34.99~~

Out Of Stock

Request Price Match Ask a Question Write a Review

Refine your TT-02 drivetrain with the Tamiya TT-02 Oil Gear Diff Unit (HC-54875). This sealed, oil-filled differential lets you fine-tune cornering balance and traction by changing silicone oil viscosity or using diff putty, helping you adapt the car to a wide range of track conditions.

Features

Oil-filled, sealed design for smooth, efficient drive
Tuning flexibility with different silicone oil grades or gear diff putty
Glass fibre-reinforced nylon gear case for durability
Die-cast bevel gears for consistent performance
Gasket included to help maintain a reliable seal

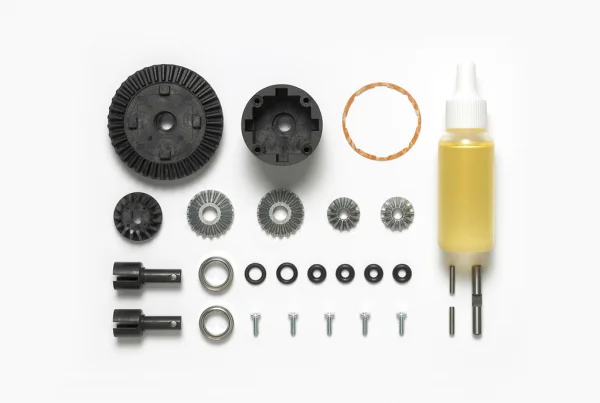

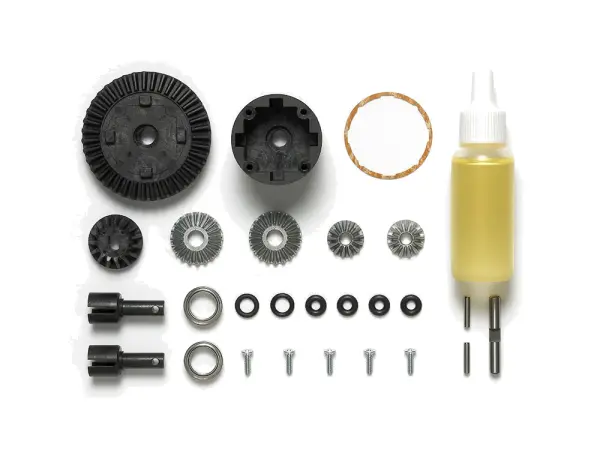

What’s Included

Glass fibre-reinforced nylon gear case parts x1
Gasket x1
Die-cast bevel gears x4

Tuning Guidance

Lighter silicone oils are suggested for loose/low-traction surfaces
Heavier oils are suggested for high-traction tracks to calm diff action

Suggested Compatibility and Notes

Suggested compatibility: Tamiya TT-02 series chassis variants

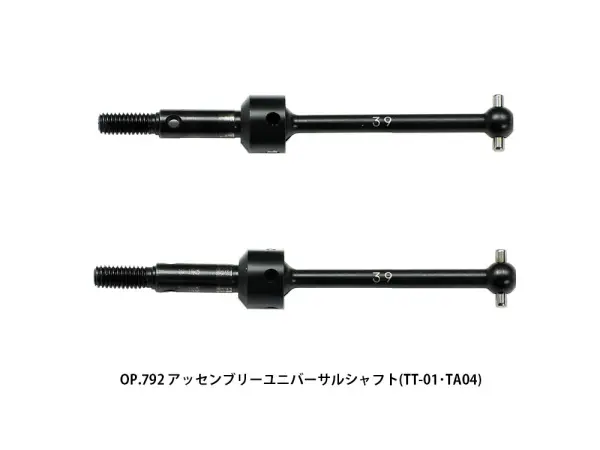

For TT-02 and TT-02D, a suggested pairing is Tamiya 53792 RC Universal Shaft Assembly
For TT-02B, a suggested pairing is Tamiya 53791 RC Universal Shaft Assembly (DF-02)
Not suggested compatibility with TT-01/TT-01E due to a bearing spacing difference (~0.5 mm) which may cause binding

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

Oil-filled sealed gear diffs have become a standard tuning part for many of Tamiya’s performance race cars. This TT-02 version can be used on any of Tamiya’s TT-02 chassis variants to further improve the cars tuning options.

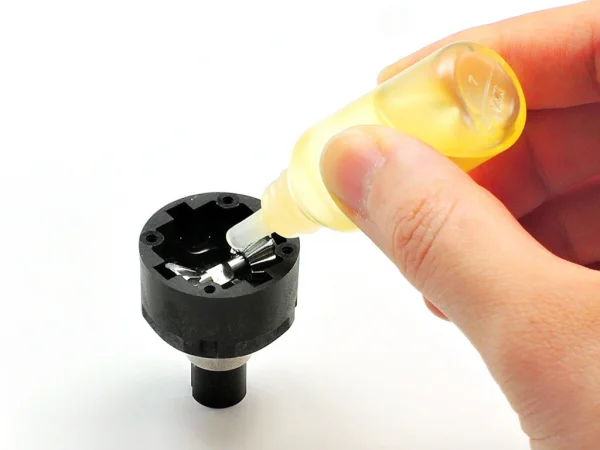

Oil-filled gear diffs offer the user to add different viscosity silicone oils into the differential gears housing in order to change the rate of speed in which the differential gears rotate. The rate of rotation can be tuned depending on the track surface traction level. Lighter oils are advised in loose track conditions, whereas high traction conditions favor heavier oils.

• Glass fiber-reinforced Nylon Gear Case Parts x1
• Gasket x1
• Die-Cast Bevel Gears x4
• Oil-filled gear differential units facilitate smooth, efficient drive. Use different grades of oil, gear diff putty, etc. to quickly adjust your setup.
• Compatible with TT-02 series chassis (Item 53792 RC Universal Shaft Assembly required for TT-02, TT-02D; Item 53791 RC Universal Shaft Assembly DF-02 required for TT-02B).

NOTE:This item will NOT FIT the TAMIYA TT-01/TT-01E chassis. The bearing spacing is .5mm too wide and will bind if you attempt to install on a TT-01 variant chassis.

Key Info:

Brand: Tamiya
Part No: HC-54875
Barcode: 4950344548750
Fitment: Option Part

Additional Categories:

Standard Shipping

£3.95 to most of the UK

Express Shipping

£6.95 to most of the UK

Worldwide Shipping

Available at checkout

Reviews

No specific product reviews yet, why not write one?

WRITE A REVIEW

Name

Rating

Your Review

All reviews are subject to moderation

Questions & Answers

Real questions from real customers. Why not ask your own?

Are these gears steel and would two be required for Tamiya TT02

Jason Lahme / 2nd February 2023

Internal are metal the outer (black) gears are plastic , and yes you would need 2 for front and back of the car.

Steve @ Wheelspin Models
