Description

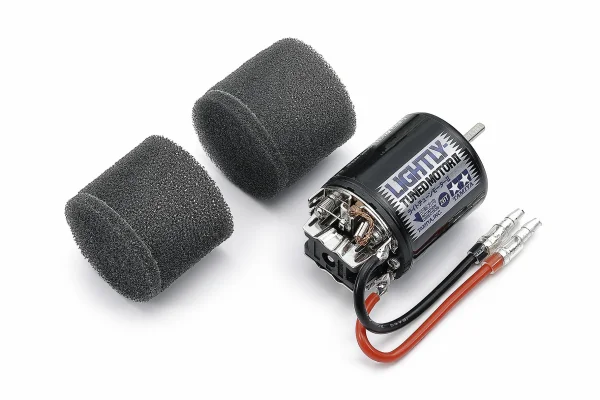

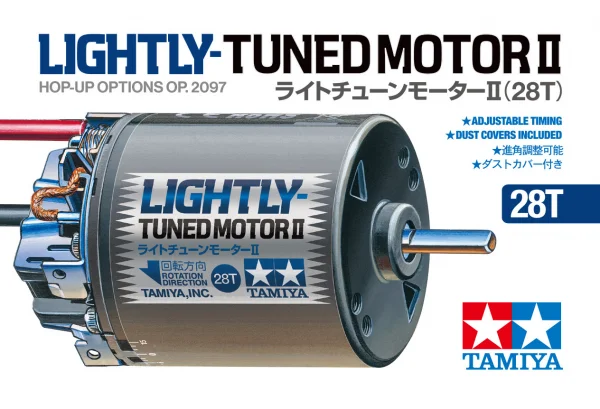

The Tamiya Lightly-Tuned Motor II (28T), part number HC-22097, is a brushed 28-turn motor designed for smooth, manageable performance. Part of Tamiya’s refreshed motor line-up, it now features ball bearings for improved efficiency versus previous bushing-equipped designs. Its mild output makes it a sensible choice for less experienced R/C car drivers and more sedate models, with suggested compatibility including Tamiya M-Chassis cars.

Features

  • Lightly tuned 28T brushed motor offering mild, controllable power
  • Silver label with black and navy lettering and a black can (tentative)
  • Input voltage: 6.6–7.2V
  • Dedicated carbon brush design
  • Adjustable timing between -15 and +15 degrees
  • End bell with heat sink design for greater longevity
  • Ball bearings reduce maintenance hassle
  • Uses Tamiya connectors
  • Dust covers (x2) included
  • Printed circuit board (PCB) design reduces noise
  • Pinion gear and spare brushes are sold separately

This motor balances durability and ease of use, making it a practical upgrade within Tamiya’s ecosystem where mild speed, efficiency and reliability are priorities.

Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Tamiya Lightly-Tuned Motor II (28T) Manuals & Guides

How-To Guides & Articles

Specifications

We are consolidating our motor line-up into a new set of four items. All of these new motors will be fitted with ball bearings (previously these were simple metal bushings/bearings) for superior efficiency. Please note that the existing motors (Items 53696, 53697, 53779, 53983, 53929, 53930, 54114 and 56526) will be discontinued as soon as their current stock sells out.

About the Item

  • As the name suggests, this 28T brushed motor is lightly tuned and thus its mild power is perfect for use by less experienced R/C car drivers, or those using slightly more sedate models like M-Chassis cars
  • Features a silver label with black and navy lettering and a black can (tentative)
  • Input voltage: 6.6-7.2V
  • Carbon brushes are a dedicated design
  • Timing is adjustable between -15 and +15 degrees
  • The end bell’s heat sink design contributes to greater longevity
  • Ball bearings reduce maintenance hassle
  • The motor uses Tamiya connectors
  • Dust covers (x2) are included
  • Printed circuit board (PCB) design reduces noise
  • Please note that pinion gear and spare brushes are sold separately


Key Info:
  • Brand: Tamiya
  • Part No: HC-22097
  • Barcode: 4950344220977
  • Fitment: Option Part
